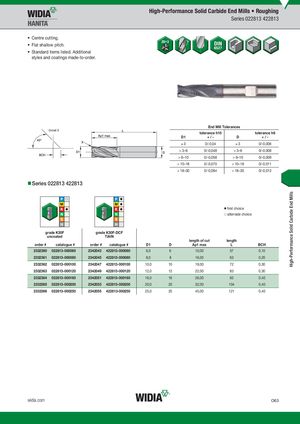

High-Performance Solid Carbide End Mills High-Performance Solid Carbide End Mills • Roughing Series 022813 422813 • Centre cutting. • Flat shallow pitch. • Standard items listed. Additional styles and coatings made-to-order. End Mill Tolerances Detail X tolerance h10 tolerance h6 D1 +/- D +/- )3 0/-0,04 )3 0/-0,006 > 3–6 0/-0,048 > 3–6 0/-0,008 > 6–10 0/-0,058 > 6–10 0/-0,009 > 10–18 0/-0,070 > 10–18 0/-0,011 > 18–30 0/-0,084 > 18–30 0/-0,013 Series 022813 422813 ⅷ first choice ࠗ alternate choice graKde30KF30F graKde30KF3-0DFC-FDCF uncoated TiAlN length of cut length order # catalogue # order # catalogue # D1 D Ap1 max L BCH 2332360 022813-000060 2342043 422813-000060 6,0 6 10,00 57 0,10 2332361 022813-000080 2342045 422813-000080 8,0 8 16,00 63 0,20 2332362 022813-000100 2342047 422813-000100 10,0 10 19,00 72 0,30 2332363 022813-000120 2342049 422813-000120 12,0 12 22,00 83 0,30 2332364 022813-000160 2342051 422813-000160 16,0 16 26,00 92 0,40 2332365 022813-000200 2342053 422813-000200 20,0 20 32,00 104 0,40 2332366 022813-000250 2342055 422813-000250 25,0 25 45,00 121 0,40 widia.com O63
