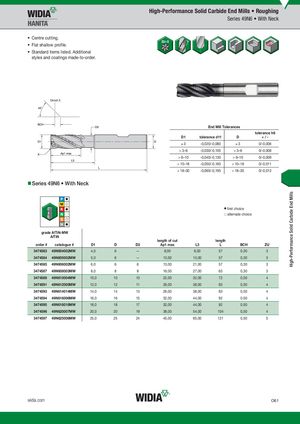

High-Performance Solid Carbide End Mills High-Performance Solid Carbide End Mills • Roughing Series 49N6 • With Neck • Centre cutting. • Flat shallow profile. • Standard items listed. Additional styles and coatings made-to-order. Detail X End Mill Tolerances tolerance h6 D1 tolerance d11 D +/- )3 -0,020/-0,080 )3 0/-0,006 > 3–6 -0,030/-0,105 > 3–6 0/-0,008 > 6–10 -0,040/-0,130 > 6–10 0/-0,009 > 10–18 -0,050/-0,160 > 10–18 0/-0,011 > 18–30 -0,065/-0,195 > 18–30 0/-0,013 „Series 49N6 • With Neck ⅷ first choice ࠗ alternate choice graAdelTAiNlT-MiNW-MW AlTiN length of cut length order # catalogue # D1 D D3 Ap1 max L3 L BCH ZU 3474583 49N604002MW 4,0 6 — 8,00 8,00 57 0,30 3 3474584 49N605002MW 5,0 6 — 13,00 13,00 57 0,30 3 3474585 49N606002MW 6,0 6 6 13,00 21,00 57 0,30 3 3474587 49N608003MW 8,0 8 8 16,00 27,00 63 0,30 3 3474589 49N610004MW 10,0 10 10 22,00 32,00 72 0,50 4 3474591 49N612005MW 12,0 12 11 26,00 38,00 83 0,50 4 3474593 49N614014MW 14,0 14 13 26,00 38,00 83 0,50 4 3474594 49N616006MW 16,0 16 15 32,00 44,00 92 0,50 4 3474595 49N618018MW 18,0 18 17 32,00 44,00 92 0,50 4 3474596 49N620007MW 20,0 20 19 38,00 54,00 104 0,50 4 3474597 49N625008MW 25,0 25 24 45,00 65,00 121 0,50 5 widia.com O61
