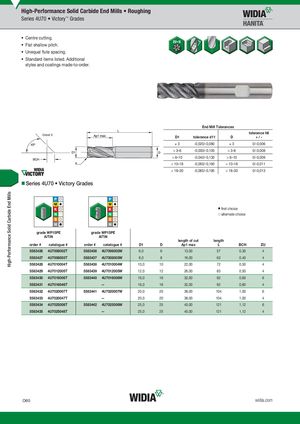

High-Performance Solid Carbide End Mills High-Performance Solid Carbide End Mills • Roughing Series 4U70 • Victory™ Grades • Centre cutting. • Flat shallow pitch. • Unequal flute spacing. • Standard items listed. Additional styles and coatings made-to-order. End Mill Tolerances Detail X tolerance h6D1tolerance d11D+/- )3 -0,020/-0,080 )3 0/-0,006 > 3–6 -0,030/-0,105 > 3–6 0/-0,008 > 6–10 -0,040/-0,130 > 6–10 0/-0,009 > 10–18 -0,050/-0,160 > 10–18 0/-0,011 > 18–30 -0,065/-0,195 > 18–30 0/-0,013 Series 4U70 • Victory Grades ⅷ first choice ࠗ alternate choice graWdePW15PP1E5PE graWdePW15PP1E5PE AlTiN AlTiN length of cut length order # catalogue # order # catalogue # D1 D Ap1 max L BCH ZU 5583426 4U7006002T 5583436 4U7006002W 6,0 6 13,00 57 0,30 4 5583427 4U7008003T 5583437 4U7008003W 8,0 8 16,00 63 0,40 4 5583428 4U7010004T 5583438 4U7010004W 10,0 10 22,00 72 0,50 4 5583429 4U7012005T 5583439 4U7012005W 12,0 12 26,00 83 0,50 4 5583430 4U7016006T 5583440 4U7016006W 16,0 16 32,00 92 0,60 6 5583431 4U7016046T — 16,0 16 32,00 92 0,60 4 5583432 4U7020007T 5583441 4U7020007W 20,0 20 38,00 104 1,00 6 5583433 4U7020047T — 20,0 20 38,00 104 1,00 4 5583434 4U7025008T 5583442 4U7025008W 25,0 25 45,00 121 1,12 6 5583435 4U7025048T — 25,0 25 45,00 121 1,12 4 O60 widia.com
