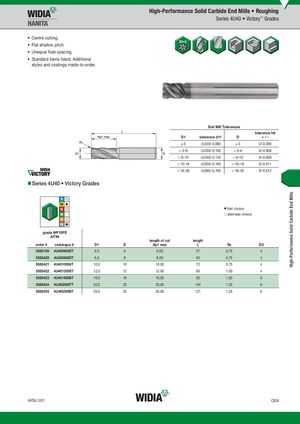

High-Performance Solid Carbide End Mills High-Performance Solid Carbide End Mills • Roughing Series 4U40 • Victory™ Grades • Centre cutting. • Flat shallow pitch. • Unequal flute spacing. • Standard items listed. Additional styles and coatings made-to-order. End Mill Tolerances tolerance h6 D1 tolerance d11 D +/- )3 -0,020/-0,080 )3 0/-0,006 > 3–6 -0,030/-0,105 > 3–6 0/-0,008 > 6–10 -0,040/-0,130 > 6–10 0/-0,009 > 10–18 -0,050/-0,160 > 10–18 0/-0,011 > 18–30 -0,065/-0,195 > 18–30 0/-0,013 „Series 4U40 • Victory Grades ⅷ first choice ࠗ alternate choice graWdePW15PP1E5PE AlTiN length of cut length order # catalogue # D1 D Ap1 max L R¡ ZU 5583159 4U4006002T 6,0 6 6,00 57 0,75 4 5583420 4U4008003T 8,0 8 8,00 63 0,75 4 5583421 4U4010004T 10,0 10 10,00 72 0,75 4 5583422 4U4012005T 12,0 12 12,00 83 1,00 4 5583423 4U4016006T 16,0 16 16,00 92 1,00 6 5583424 4U4020007T 20,0 20 20,00 104 1,25 6 5583425 4U4025008T 25,0 25 25,00 121 1,25 6 widia.com O59
