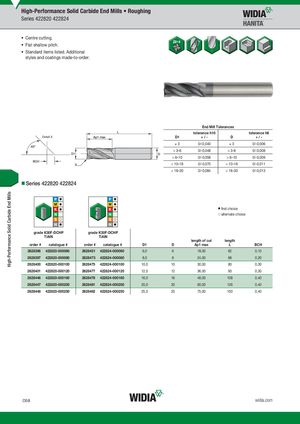

High-Performance Solid Carbide End Mills High-Performance Solid Carbide End Mills • Roughing Series 422820 422824 • Centre cutting. • Flat shallow pitch. • Standard items listed. Additional styles and coatings made-to-order. End Mill Tolerances tolerance h10 tolerance h6 Detail X D1 +/- D +/- )3 0/-0,040 )3 0/-0,006 > 3–6 0/-0,048 > 3–6 0/-0,008 > 6–10 0/-0,058 > 6–10 0/-0,009 > 10–18 0/-0,070 > 10–18 0/-0,011 > 18–30 0/-0,084 > 18–30 0/-0,013 „Series 422820 422824 ⅷ first choice ࠗ alternate choice graKde30KF3-0DFC-HDPCHP graKde30KF3-0DFC-HDPCHP TiAlN TiAlN length of cut length order # catalogue # order # catalogue # D1 D Ap1 max L BCH 2628396 422820-000060 2628451 422824-000060 6,0 6 18,00 62 0,10 2628397 422820-000080 2628473 422824-000080 8,0 8 24,00 68 0,20 2628400 422820-000100 2628475 422824-000100 10,0 10 30,00 80 0,30 2628401 422820-000120 2628477 422824-000120 12,0 12 36,00 93 0,30 2628446 422820-000160 2628478 422824-000160 16,0 16 48,00 108 0,40 2628447 422820-000200 2628481 422824-000200 20,0 20 60,00 126 0,40 2628448 422820-000250 2628482 422824-000250 25,0 25 75,00 150 0,40 O58 widia.com
