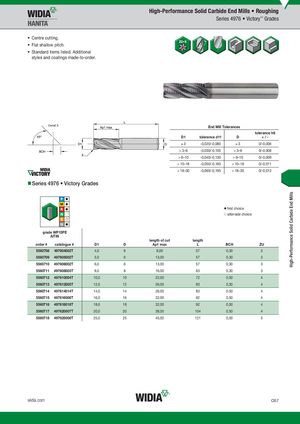

High-Performance Solid Carbide End Mills High-Performance Solid Carbide End Mills • Roughing Series 4976 • Victory™ Grades • Centre cutting. • Flat shallow pitch. • Standard items listed. Additional styles and coatings made-to-order. Detail X End Mill Tolerances tolerance h6 D1 tolerance d11 D +/- )3 -0,020/-0,080 )3 0/-0,006 > 3–6 -0,030/-0,105 > 3–6 0/-0,008 > 6–10 -0,040/-0,130 > 6–10 0/-0,009 > 10–18 -0,050/-0,160 > 10–18 0/-0,011 > 18–30 -0,065/-0,195 > 18–30 0/-0,013 „Series 4976 • Victory Grades ⅷ first choice ࠗ alternate choice graWdePW15PP1E5PE AlTiN length of cut length order # catalogue # D1 D Ap1 max L BCH ZU 5560708 497604002T 4,0 6 8,00 57 0,30 3 5560709 497605002T 5,0 6 13,00 57 0,30 3 5560710 497606002T 6,0 6 13,00 57 0,30 3 5560711 497608003T 8,0 8 16,00 63 0,30 3 5560712 497610004T 10,0 10 22,00 72 0,50 4 5560713 497612005T 12,0 12 26,00 83 0,50 4 5560714 497614014T 14,0 14 26,00 83 0,50 4 5560715 497616006T 16,0 16 32,00 92 0,50 4 5560716 497618018T 18,0 18 32,00 92 0,50 4 5560717 497620007T 20,0 20 38,00 104 0,50 4 5560718 497625008T 25,0 25 45,00 121 0,50 5 widia.com O57
