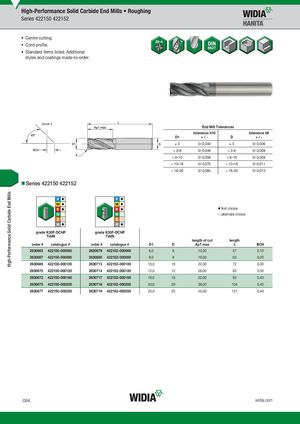

High-Performance Solid Carbide End Mills High-Performance Solid Carbide End Mills • Roughing Series 422150 422152 • Centre cutting. • Cord profile. • Standard items listed. Additional styles and coatings made-to-order. Detail X End Mill Tolerances tolerance h10 tolerance h6 D1 +/- D +/- )3 0/-0,040 )3 0/-0,006 > 3–6 0/-0,048 > 3–6 0/-0,008 > 6–10 0/-0,058 > 6–10 0/-0,009 > 10–18 0/-0,070 > 10–18 0/-0,011 > 18–30 0/-0,084 > 18–30 0/-0,013 „Series 422150 422152 ⅷ first choice ࠗ alternate choice graKde30KF3-0DFC-HDPCHP graKde30KF3-0DFC-HDPCHP TiAlN TiAlN length of cut length order # catalogue # order # catalogue # D1 D Ap1 max L BCH 2630665 422150-000060 2630679 422152-000060 6,0 6 13,00 57 0,10 2630667 422150-000080 2630680 422152-000080 8,0 8 19,00 63 0,20 2630669 422150-000100 2630713 422152-000100 10,0 10 22,00 72 0,30 2630670 422150-000120 2630714 422152-000120 12,0 12 26,00 83 0,30 2630672 422150-000160 2630717 422152-000160 16,0 16 32,00 92 0,40 2630675 422150-000200 2630718 422152-000200 20,0 20 38,00 104 0,40 2630677 422150-000250 2630719 422152-000250 25,0 25 45,00 121 0,40 O56 widia.com
