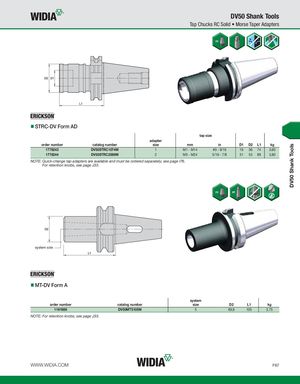

DV50 Shank Tools DV50 Shank Tools Tap Chucks RC Solid • Morse Taper Adapters STRC-DV Form AD tap size adapter order number catalog number size mm in D1 D2 L1 kg 1778243 DV50STRC1074M 1 M1 - M14 #0 - 9/16 19 36 74 3,60 1778244 DV50STRC2089M 2 M5 - M24 5/16 - 7/8 31 53 89 3,80 NOTE: Quick-change tap adapters are available and must be ordered separately; see page I76. For retention knobs, see page J33. system size MT-DV Form A system order number catalog number size D2 L1 kg 1191989 DV50MT5105M 5 69,9 105 3,75 NOTE: For retention knobs; see page J33. WWW.WIDIA.COM F67
