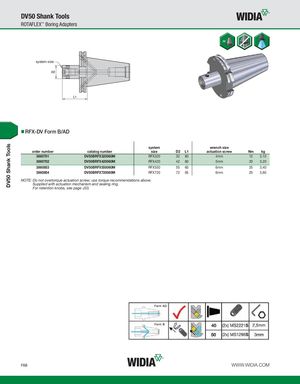

DV50 Shank Tools DV50 Shank Tools ROTAFLEX™ Boring Adapters system size RFX-DV Form B/AD system wrench size order number catalog number size D2 L1 actuation screw Nm kg 3860701 DV50BRFX320060M RFX320 32 60 4mm 12 3,10 3860702 DV50BRFX420060M RFX420 42 60 5mm 20 3,20 3860853 DV50BRFX550060M RFX550 55 60 6mm 25 3,40 3860854 DV50BRFX720065M RFX720 72 65 6mm 25 3,60 NOTE: Do not overtorque actuation screw; use torque recommendations above. Supplied with actuation mechanism and sealing ring. For retention knobs, see page J33. F68 WWW.WIDIA.COM
