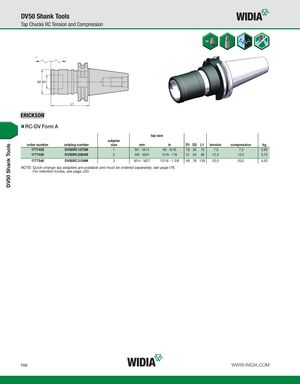

DV50 Shank Tools DV50 Shank Tools Tap Chucks RC Tension and Compression L1 RC-DV Form A tap size adapter order number catalog number size mm in D1 D2 L1 tension compression kg 1777453 DV50RC1075M 1 M1 - M14 #0 - 9/16 19 36 75 7,5 7,5 2,90 1777455 DV50RC2084M 2 M5 - M24 5/16 - 7/8 31 53 85 12,5 12,5 3,70 1777540 DV50RC3139M 3 M14 - M27 13/16 - 1 3/8 48 78 139 20,0 20,0 4,50 NOTE: Quick-change tap adapters are available and must be ordered separately; see page I76. For retention knobs, see page J33. F66 WWW.WIDIA.COM
