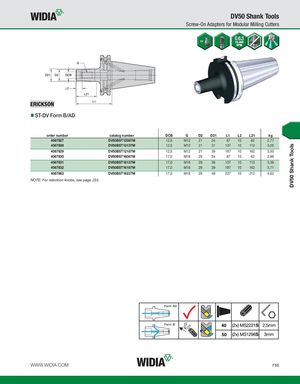

DV50 Shank Tools DV50 Shank Tools Screw-On Adapters for Modular Milling Cutters ST-DV Form B/AD order number catalog number DCB G D2 D21 L1 L2 L21 kg 4067827 DV50BST12087M 12,5 M12 21 24 87 10 62 2,77 4067828 DV50BST12137M 12,5 M12 21 31 137 10 112 3,05 4067829 DV50BST12187M 12,5 M12 21 39 187 10 162 3,50 4067830 DV50BST16087M 17,0 M16 29 34 87 10 62 2,96 4067831 DV50BST16137M 17,0 M16 29 39 137 10 112 3,38 4067832 DV50BST16187M 17,0 M16 29 39 187 10 162 3,71 4067863 DV50BST16237M 17,0 M16 29 49 237 10 212 4,62 NOTE: For retention knobs, see page J33. WWW.WIDIA.COM F65
