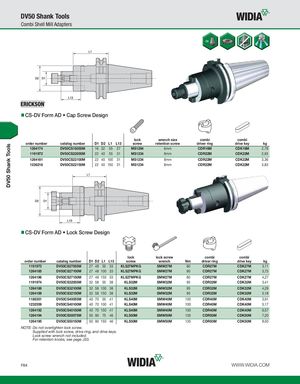

DV50 Shank Tools DV50 Shank Tools Combi Shell Mill Adapters CS-DV Form AD • Cap Screw Design lock wrench size combi combi order number catalog number D1 D2 L1 L13 screw retention screw driver ring drive key kg 1264174 DV50CS16055M 16 32 55 27 MS1294 6mm CDR16M CDK16M 2,78 1191972 DV50CS22055M 22 40 55 31 MS1234 8mm CDR22M CDK22M 2,93 1264181 DV50CS22100M 22 40 100 31 MS1234 8mm CDR22M CDK22M 3,36 1236218 DV50CS22150M 22 40 150 31 MS1234 8mm CDR22M CDK22M 3,83 CS-DV Form AD • Lock Screw Design lock lock screw combi combi order number catalog number D1 D2 L1 L13 screw wrench Nm driver ring drive key kg 1191973 DV50CS27055M 27 48 55 33 KLS27MPKG SMW27M 80 CDR27M CDK27M 3,11 1264185 DV50CS27100M 27 48 100 33 KLS27MPKG SMW27M 80 CDR27M CDK27M 3,75 1264186 DV50CS27150M 27 48 150 33 KLS27MPKG SMW27M 80 CDR27M CDK27M 4,27 1191974 DV50CS32055M 32 58 55 38 KLS32M SMW32M 95 CDR32M CDK32M 3,41 1264188 DV50CS32100M 32 58 100 38 KLS32M SMW32M 95 CDR32M CDK32M 4,29 1264189 DV50CS32150M 32 58 150 38 KLS32M SMW32M 95 CDR32M CDK32M 5,18 1188351 DV50CS40055M 40 70 55 41 KLS40M SMW40M 100 CDR40M CDK40M 3,91 1232559 DV50CS40100M 40 70 100 41 KLS40M SMW40M 100 CDR40M CDK40M 5,17 1264192 DV50CS40150M 40 70 150 41 KLS40M SMW40M 100 CDR40M CDK40M 6,57 1264194 DV50CS50075M 50 90 75 46 KLS50M SMW50M 135 CDR50M CDK50M 7,20 1264195 DV50CS50150M 50 90 150 46 KLS50M SMW50M 135 CDR50M CDK50M 8,50 NOTE: Do not overtighten lock screw. Supplied with lock screw, drive ring, and drive keys. Lock screw wrench not included. For retention knobs, see page J33. F64 WWW.WIDIA.COM
