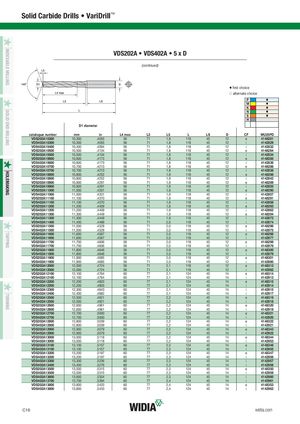

TURNINGTAPPINGHOLEMAKINGSOLID END MILLINGINDEXABLE MILLING Solid Carbide Drills • VariDrill™ VDS202A • VDS402A • 5 x D (continued) v first choice j alternate choice P v M v K v N v S v H D1 diameter catalogue number mm in L4 max L3 L5 L LS D CF WU25PD VDS202A10300 10,300 .4055 56 71 1,8 118 45 12 e 4148261 VDS402A10300 10,300 .4055 56 71 1,8 118 45 12 i 4142829 VDS402A10400 10,400 .4094 56 71 1,8 118 45 12 i 4142832 VDS202A10500 10,500 .4134 56 71 1,8 118 45 12 e 4148284 VDS402A10500 10,500 .4134 56 71 1,8 118 45 12 i 4142834 VDS202A10600 10,600 .4173 56 71 1,8 118 45 12 e 4148285 VDS402A10600 10,600 .4173 56 71 1,8 118 45 12 i 4142836 VDS202A10700 10,700 .4213 56 71 1,8 118 45 12 e 4148286 VDS402A10700 10,700 .4213 56 71 1,8 118 45 12 i 4142838 VDS202A10800 10,800 .4252 56 71 1,9 118 45 12 e 4148288 VDS402A10800 10,800 .4252 56 71 1,9 118 45 12 i 4142842 VDS202A10900 10,900 .4291 56 71 1,9 118 45 12 e 4148289 VDS402A10900 10,900 .4291 56 71 1,9 118 45 12 i 4142855 VDS202A11000 11,000 .4331 56 71 1,9 118 45 12 e 4148290 VDS402A11000 11,000 .4331 56 71 1,9 118 45 12 i 4142857 VDS202A11100 11,100 .4370 56 71 1,9 118 45 12 e 4148291 VDS402A11100 11,100 .4370 56 71 1,9 118 45 12 i 4142858 VDS202A11200 11,200 .4409 56 71 1,9 118 45 12 e 4148293 VDS402A11200 11,200 .4409 56 71 1,9 118 45 12 i 4142862 VDS202A11300 11,300 .4449 56 71 1,9 118 45 12 e 4148294 VDS402A11300 11,300 .4449 56 71 1,9 118 45 12 i 4142873 VDS402A11400 11,400 .4488 56 71 2,0 118 45 12 i 4142874 VDS202A11500 11,500 .4528 56 71 2,0 118 45 12 e 4148296 VDS402A11500 11,500 .4528 56 71 2,0 118 45 12 i 4142875 VDS202A11600 11,600 .4567 56 71 2,0 118 45 12 e 4148298 VDS402A11600 11,600 .4567 56 71 2,0 118 45 12 i 4142877 VDS202A11700 11,700 .4606 56 71 2,0 118 45 12 e 4148299 VDS402A11700 11,700 .4606 56 71 2,0 118 45 12 i 4142878 VDS202A11800 11,800 .4646 56 71 2,0 118 45 12 e 4148300 VDS402A11800 11,800 .4646 56 71 2,0 118 45 12 i 4142879 VDS202A11900 11,900 .4685 56 71 2,0 118 45 12 e 4148301 VDS402A11900 11,900 .4685 56 71 2,0 118 45 12 i 4142880 VDS202A12000 12,000 .4724 56 71 2,1 118 45 12 e 4148313 VDS402A12000 12,000 .4724 56 71 2,1 118 45 12 i 4142882 VDS202A12100 12,100 .4764 60 77 2,1 124 45 14 e 4148314 VDS402A12100 12,100 .4764 60 77 2,1 124 45 14 i 4142913 VDS202A12200 12,200 .4803 60 77 2,1 124 45 14 e 4148315 VDS402A12200 12,200 .4803 60 77 2,1 124 45 14 i 4142914 VDS402A12300 12,300 .4843 60 77 2,1 124 45 14 i 4142915 VDS402A12400 12,400 .4882 60 77 2,1 124 45 14 i 4142917 VDS202A12500 12,500 .4921 60 77 2,2 124 45 14 e 4148319 VDS402A12500 12,500 .4921 60 77 2,2 124 45 14 i 4142918 VDS202A12600 12,600 .4961 60 77 2,2 124 45 14 e 4148320 VDS402A12600 12,600 .4961 60 77 2,2 124 45 14 i 4142919 VDS202A12700 12,700 .5000 60 77 2,2 124 45 14 e 4148321 VDS402A12700 12,700 .5000 60 77 2,2 124 45 14 i 4142920 VDS202A12800 12,800 .5039 60 77 2,2 124 45 14 e 4148322 VDS402A12800 12,800 .5039 60 77 2,2 124 45 14 i 4142921 VDS202A12900 12,900 .5079 60 77 2,2 124 45 14 e 4148343 VDS402A12900 12,900 .5079 60 77 2,2 124 45 14 i 4142922 VDS202A13000 13,000 .5118 60 77 2,2 124 45 14 e 4148344 VDS402A13000 13,000 .5118 60 77 2,2 124 45 14 i 4142953 VDS202A13100 13,100 .5157 60 77 2,3 124 45 14 e 4148346 VDS402A13100 13,100 .5157 60 77 2,3 124 45 14 i 4142955 VDS202A13200 13,200 .5197 60 77 2,3 124 45 14 e 4148347 VDS402A13200 13,200 .5197 60 77 2,3 124 45 14 i 4142956 VDS402A13300 13,300 .5236 60 77 2,3 124 45 14 i 4142957 VDS402A13400 13,400 .5276 60 77 2,3 124 45 14 i 4142958 VDS202A13500 13,500 .5315 60 77 2,3 124 45 14 e 4148350 VDS402A13500 13,500 .5315 60 77 2,3 124 45 14 i 4142959 VDS402A13600 13,600 .5354 60 77 2,3 124 45 14 i 4142960 VDS402A13700 13,700 .5394 60 77 2,4 124 45 14 i 4142961 VDS202A13800 13,800 .5433 60 77 2,4 124 45 14 e 4148353 VDS402A13800 13,800 .5433 60 77 2,4 124 45 14 i 4142962 C16 widia.com
