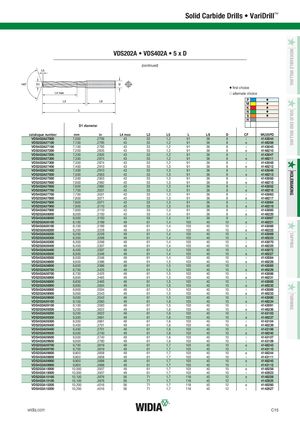

TURNINGTAPPINGHOLEMAKINGSOLID END MILLINGINDEXABLE MILLING Solid Carbide Drills • VariDrill™ VDS202A • VDS402A • 5 x D (continued) v first choice j alternate choice P v M v K v N v S v H D1 diameter catalogue number mm in L4 max L3 L5 L LS D CF WU25PD VDS402A07000 7,000 .2756 43 53 1,2 91 36 8 i 4143044 VDS202A07100 7,100 .2795 43 53 1,2 91 36 8 e 4148208 VDS402A07100 7,100 .2795 43 53 1,2 91 36 8 i 4143045 VDS202A07200 7,200 .2835 43 53 1,2 91 36 8 e 4148210 VDS402A07200 7,200 .2835 43 53 1,2 91 36 8 i 4143047 VDS202A07300 7,300 .2874 43 53 1,2 91 36 8 e 4148211 VDS402A07300 7,300 .2874 43 53 1,2 91 36 8 i 4143048 VDS202A07400 7,400 .2913 43 53 1,3 91 36 8 e 4148212 VDS402A07400 7,400 .2913 43 53 1,3 91 36 8 i 4143049 VDS202A07500 7,500 .2953 43 53 1,3 91 36 8 e 4148213 VDS402A07500 7,500 .2953 43 53 1,3 91 36 8 i 4143050 VDS202A07600 7,600 .2992 43 53 1,3 91 36 8 e 4148215 VDS402A07600 7,600 .2992 43 53 1,3 91 36 8 i 4143052 VDS202A07700 7,700 .3031 43 53 1,3 91 36 8 e 4148216 VDS402A07700 7,700 .3031 43 53 1,3 91 36 8 i 4143063 VDS202A07800 7,800 .3071 43 53 1,3 91 36 8 e 4148217 VDS402A07800 7,800 .3071 43 53 1,3 91 36 8 i 4143064 VDS202A07900 7,900 .3110 43 53 1,3 91 36 8 e 4148218 VDS402A07900 7,900 .3110 43 53 1,3 91 36 8 i 4143065 VDS202A08000 8,000 .3150 43 53 1,4 91 36 8 e 4148220 VDS402A08000 8,000 .3150 43 53 1,4 91 36 8 i 4143067 VDS202A08100 8,100 .3189 49 61 1,4 103 40 10 e 4148221 VDS402A08100 8,100 .3189 49 61 1,4 103 40 10 i 4143068 VDS202A08200 8,200 .3228 49 61 1,4 103 40 10 e 4148222 VDS402A08200 8,200 .3228 49 61 1,4 103 40 10 i 4143069 VDS202A08300 8,300 .3268 49 61 1,4 103 40 10 e 4148223 VDS402A08300 8,300 .3268 49 61 1,4 103 40 10 i 4143070 VDS202A08400 8,400 .3307 49 61 1,4 103 40 10 e 4148225 VDS402A08400 8,400 .3307 49 61 1,4 103 40 10 i 4143072 VDS202A08500 8,500 .3346 49 61 1,4 103 40 10 e 4148227 VDS402A08500 8,500 .3346 49 61 1,4 103 40 10 i 4143084 VDS202A08600 8,600 .3386 49 61 1,5 103 40 10 e 4148228 VDS402A08600 8,600 .3386 49 61 1,5 103 40 10 i 4143085 VDS202A08700 8,700 .3425 49 61 1,5 103 40 10 e 4148229 VDS402A08700 8,700 .3425 49 61 1,5 103 40 10 i 4143086 VDS202A08800 8,800 .3465 49 61 1,5 103 40 10 e 4148231 VDS402A08800 8,800 .3465 49 61 1,5 103 40 10 i 4143088 VDS202A08900 8,900 .3504 49 61 1,5 103 40 10 e 4148232 VDS402A08900 8,900 .3504 49 61 1,5 103 40 10 i 4143089 VDS202A09000 9,000 .3543 49 61 1,5 103 40 10 e 4148233 VDS402A09000 9,000 .3543 49 61 1,5 103 40 10 i 4143090 VDS202A09100 9,100 .3583 49 61 1,6 103 40 10 e 4148234 VDS402A09100 9,100 .3583 49 61 1,5 103 40 10 i 4143091 VDS202A09200 9,200 .3622 49 61 1,6 103 40 10 e 4148236 VDS402A09200 9,200 .3622 49 61 1,6 103 40 10 i 4143103 VDS202A09300 9,300 .3661 49 61 1,6 103 40 10 e 4148237 VDS402A09300 9,300 .3661 49 61 1,6 103 40 10 i 4143104 VDS202A09400 9,400 .3701 49 61 1,6 103 40 10 e 4148239 VDS402A09400 9,400 .3701 49 61 1,6 103 40 10 i 4143106 VDS202A09500 9,500 .3740 49 61 1,6 103 40 10 e 4148240 VDS402A09500 9,500 .3740 49 61 1,6 103 40 10 i 4143107 VDS402A09600 9,600 .3780 49 61 1,6 103 40 10 i 4143109 VDS202A09700 9,700 .3819 49 61 1,7 103 40 10 e 4148243 VDS402A09700 9,700 .3819 49 61 1,7 103 40 10 i 4143110 VDS202A09800 9,800 .3858 49 61 1,7 103 40 10 e 4148244 VDS402A09800 9,800 .3858 49 61 1,7 103 40 10 i 4143111 VDS202A09900 9,900 .3898 49 61 1,7 103 40 10 e 4148245 VDS402A09900 9,900 .3898 49 61 1,7 103 40 10 i 4143112 VDS202A10000 10,000 .3937 49 61 1,7 103 40 10 e 4148258 VDS402A10000 10,000 .3937 49 61 1,7 103 40 10 i 4142823 VDS202A10100 10,100 .3976 56 71 1,7 118 45 12 e 4148259 VDS402A10100 10,100 .3976 56 71 1,7 118 45 12 i 4142825 VDS202A10200 10,200 .4016 56 71 1,7 118 45 12 e 4148260 VDS402A10200 10,200 .4016 56 71 1,7 118 45 12 i 4142827 widia.com C15
