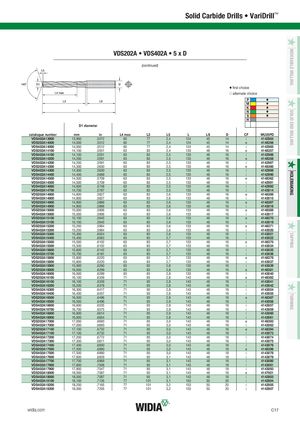

TURNINGTAPPINGHOLEMAKINGSOLID END MILLINGINDEXABLE MILLING Solid Carbide Drills • VariDrill™ VDS202A • VDS402A • 5 x D (continued) v first choice j alternate choice P v M v K v N v S v H D1 diameter catalogue number mm in L4 max L3 L5 L LS D CF WU25PD VDS402A13900 13,900 .5472 60 77 2,4 124 45 14 i 4142984 VDS202A14000 14,000 .5512 60 77 2,4 124 45 14 e 4148356 VDS402A14000 14,000 .5512 60 77 2,4 124 45 14 i 4142985 VDS202A14100 14,100 .5551 63 83 2,4 133 48 16 e 4148357 VDS402A14100 14,100 .5551 63 83 2,4 133 48 16 i 4142986 VDS202A14200 14,200 .5591 63 83 2,5 133 48 16 e 4148358 VDS402A14200 14,200 .5591 63 83 2,5 133 48 16 i 4142987 VDS202A14300 14,300 .5630 63 83 2,5 133 48 16 e 4148360 VDS402A14300 14,300 .5630 63 83 2,5 133 48 16 i 4142989 VDS402A14400 14,400 .5669 63 83 2,5 133 48 16 i 4142990 VDS202A14500 14,500 .5709 63 83 2,5 133 48 16 e 4148362 VDS402A14500 14,500 .5709 63 83 2,5 133 48 16 i 4142991 VDS402A14600 14,600 .5748 63 83 2,5 133 48 16 i 4142992 VDS402A14700 14,700 .5787 63 83 2,5 133 48 16 i 4143014 VDS202A14800 14,800 .5827 63 83 2,6 133 48 16 e 4148366 VDS402A14800 14,800 .5827 63 83 2,6 133 48 16 i 4143015 VDS202A14900 14,900 .5866 63 83 2,6 133 48 16 e 4148367 VDS402A14900 14,900 .5866 63 83 2,6 133 48 16 i 4143016 VDS202A15000 15,000 .5906 63 83 2,6 133 48 16 e 4148368 VDS402A15000 15,000 .5906 63 83 2,6 133 48 16 i 4143017 VDS202A15100 15,100 .5945 63 83 2,6 133 48 16 e 4148370 VDS402A15100 15,100 .5945 63 83 2,6 133 48 16 i 4143019 VDS202A15200 15,200 .5984 63 83 2,6 133 48 16 e 4148371 VDS402A15200 15,200 .5984 63 83 2,6 133 48 16 i 4143020 VDS402A15300 15,300 .6024 63 83 2,6 133 48 16 i 4143021 VDS402A15400 15,400 .6063 63 83 2,7 133 48 16 i 4143022 VDS202A15500 15,500 .6102 63 83 2,7 133 48 16 e 4148375 VDS402A15500 15,500 .6102 63 83 2,7 133 48 16 i 4143034 VDS402A15600 15,600 .6142 63 83 2,7 133 48 16 i 4143035 VDS402A15700 15,700 .6181 63 83 2,7 133 48 16 i 4143036 VDS202A15800 15,800 .6220 63 83 2,7 133 48 16 e 4148378 VDS402A15800 15,800 .6220 63 83 2,7 133 48 16 i 4143037 VDS402A15900 15,900 .6260 63 83 2,8 133 48 16 i 4143039 VDS202A16000 16,000 .6299 63 83 2,8 133 48 16 e 4148381 VDS402A16000 16,000 .6299 63 83 2,8 133 48 16 i 4143040 VDS202A16100 16,100 .6339 71 93 2,8 143 48 18 e 4148382 VDS402A16100 16,100 .6339 71 93 2,8 143 48 18 i 4143041 VDS402A16200 16,200 .6378 71 93 2,8 143 48 18 i 4143042 VDS402A16300 16,300 .6417 71 93 2,8 143 48 18 i 4143054 VDS402A16400 16,400 .6457 71 93 2,8 143 48 18 i 4143055 VDS202A16500 16,500 .6496 71 93 2,9 143 48 18 e 4148387 VDS402A16500 16,500 .6496 71 93 2,9 143 48 18 i 4143056 VDS402A16600 16,600 .6535 71 93 2,9 143 48 18 i 4143057 VDS402A16700 16,700 .6575 71 93 2,9 143 48 18 i 4143059 VDS402A16800 16,800 .6614 71 93 2,9 143 48 18 i 4143060 VDS402A16900 16,900 .6654 71 93 2,9 143 48 18 i 4143061 VDS202A17000 17,000 .6693 71 93 3,0 143 48 18 e 4148393 VDS402A17000 17,000 .6693 71 93 3,0 143 48 18 i 4143062 VDS202A17100 17,100 .6732 71 93 3,0 143 48 18 e 4148394 VDS402A17100 17,100 .6732 71 93 3,0 143 48 18 i 4143073 VDS402A17200 17,200 .6772 71 93 3,0 143 48 18 i 4143074 VDS402A17300 17,300 .6811 71 93 3,0 143 48 18 i 4143075 VDS402A17400 17,400 .6850 71 93 3,0 143 48 18 i 4143076 VDS202A17500 17,500 .6890 71 93 3,0 143 48 18 e 4148399 VDS402A17500 17,500 .6890 71 93 3,0 143 48 18 i 4143078 VDS402A17600 17,600 .6929 71 93 3,1 143 48 18 i 4143079 VDS402A17700 17,700 .6969 71 93 3,1 143 48 18 i 4143080 VDS402A17800 17,800 .7008 71 93 3,1 143 48 18 i 4143081 VDS402A17900 17,900 .7047 71 93 3,1 143 48 18 i 4143093 VDS202A18000 18,000 .7087 71 93 3,1 143 48 18 e 4147921 VDS402A18000 18,000 .7087 71 93 3,1 143 48 18 i 4142803 VDS402A18100 18,100 .7126 77 101 3,1 153 50 20 i 4142804 VDS402A18200 18,200 .7165 77 101 3,2 153 50 20 i 4142805 VDS402A18300 18,300 .7205 77 101 3,2 153 50 20 i 4142807 widia.com C17
