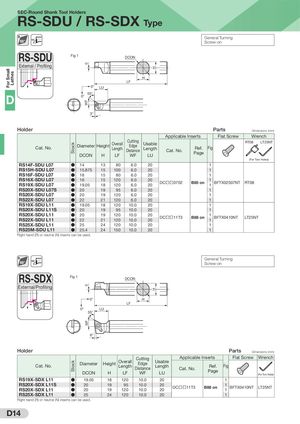

SEC-Round Shank Tool Holders RS-SDU / RS-SDX Type 93˚ General Turning Screw-on RS-SDU Fig 1 DCON 0 External / Profiling H For Small Lathes H LF 0° LU 55° D 0° WF 3° Holder Parts Dimensions (mm) Applicable Inserts Flat Screw Wrench Cutting RT08LT25NT Overall Edge Usable Stock Cat. No. Diameter Height Ref. Fig Length Distance Length Cat. No. Page DCON H LF WF LU (For Torx Holes) RS14F-SDU L07 ● 14 13 80 6.0 20 1 RS15H-SDU L07 ● 15.875 15 100 6.0 20 1 RS16F-SDU L07 ● 16 15 80 6.0 20 1 RS16X-SDU L07 ● 16 15 120 6.0 20 1 DC□□0702 B85 on BFTX02507NT RT08 RS19X-SDU L07 ● 19.05 18 120 6.0 20 1 RS20X-SDU L07S ● 20 19 95 6.0 20 1 RS20X-SDU L07 ● 20 19 120 6.0 20 1 RS22X-SDU L07 ● 22 21 120 6.0 20 1 RS19X-SDU L11 ● 19.05 18 120 10.0 20 1 RS20X-SDU L11S ● 20 19 95 10.0 20 1 RS20X-SDU L11 ● 20 19 120 10.0 20 1 DC□□11T3 B88 on BFTX0410NT LT25NT RS22X-SDU L11 ● 22 21 120 10.0 20 1 RS25X-SDU L11 ● 25 24 120 10.0 20 1 RS25M-SDU L11 ● 25.4 24 150 10.0 20 1 Right hand (R) or neutral (N) inserts can be used. 96˚ General Turning Screw-on RS-SDX Fig 1 DCON External/Profiling 0 H 0° H LF 0° LU 55° WF 6° Holder Parts Dimensions (mm) Cutting Applicable Inserts Flat Screw Wrench Overall Edge Usable Stock Diameter Height Cat. No. Length Distance Length Ref. Fig Cat. No. DCON H LF WF LU Page (For Torx Holes) RS19X-SDX L11 ● 19.05 18 120 10.0 20 1 RS20X-SDX L11S ● 20 19 95 10.0 20 1 DC□□11T3 B88 on BFTX0410NT LT25NT RS20X-SDX L11 ● 20 19 120 10.0 20 1 RS25X-SDX L11 ● 25 24 120 10.0 20 1 Right hand (R) or neutral (N) inserts can be used. D14
