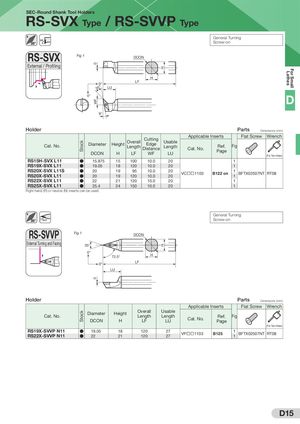

SEC-Round Shank Tool Holders RS-SVX Type / RS-SVVP Type General Turning 99˚ Screw-on RS-SVX Fig 1 DCON 0 External / Profiling H For Small Lathes H LF 0° ° LU 35 D 0° WF 9° Holder Parts Dimensions (mm) Applicable Inserts Flat Screw Wrench Cutting Overall Edge Usable Stock Cat. No. Diameter Height Ref. Fig Length Distance Length Cat. No. Page DCON H LF WF LU (For Torx Holes) RS15H-SVX L11 ● 15.875 15 100 10.0 20 1 RS19X-SVX L11 ● 19.05 18 120 10.0 20 1 RS20X-SVX L11S ● 20 19 95 10.0 20 1 VC□□1103 B122 on BFTX02507NT RT08 RS20X-SVX L11 ● 20 19 120 10.0 20 1 RS22X-SVX L11 ● 22 21 120 10.0 20 1 RS25X-SVX L11 ● 25.4 24 150 10.0 20 1 Right hand (R) or neutral (N) inserts can be used. General Turning 72.5˚ Screw-on RS-SVVP Fig 1 DCON External Turning and Facing 35° H 0° 72.5° H LF 0° LU 0 Holder Parts Dimensions (mm) Applicable Inserts Flat Screw Wrench Overall Usable Stock Diameter Height Cat. No. Length Length Ref. Fig DCON H LF LU Cat. No. Page (For Torx Holes) RS19X-SVVP N11 ● 19.05 18 120 27 1 VP□□1103 B125 BFTX02507NT RT08 RS22X-SVVP N11 ● 22 21 120 27 1 D15
