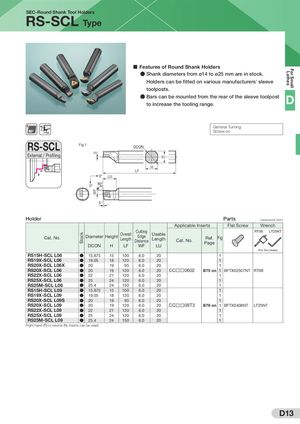

Lathes For Small Stock 0WF H SEC-Round Shank Tool Holders RS-SCL Type ■ Features of Round Shank Holders ● Shank diameters from ø14 to ø25 mm are in stock. Holders can be fitted on various manufacturers’ sleeve toolposts. ● Bars can be mounted from the rear of the sleeve toolpostto increase the tooling range. D 95˚ General Turning 95˚ Screw-on RS-SCL Fig 1 DCON External / Profiling H LF 0° LU 0° 80° 5° Holder Parts Dimensions (mm) Applicable Inserts Flat Screw Wrench Cat. No. Diameter Height OverallLengthCuttingEdgeDistanceUsableLengthCat. No.Ref.FigPage RT08LT25NT DCON H LF WF LU (For Torx Holes) RS15H-SCL L06 ● 15.875 15 100 6.0 20 1 RS19X-SCL L06 ● 19.05 18 120 6.0 20 1 RS20X-SCL L06X ● 20 19 95 6.0 20 1 RS20X-SCL L06 ● 20 19 120 6.0 20 CC□□0602 B75 on 1 BFTX02507NT RT08 RS22X-SCL L06 ● 22 21 120 6.0 20 1 RS25X-SCL L06 ● 25 24 120 6.0 20 1 RS25M-SCL L06 ● 25.4 24 150 6.0 20 1 RS15H-SCL L09 ● 15.875 15 100 6.0 20 1 RS19X-SCL L09 ● 19.05 18 120 6.0 20 1 RS20X-SCL L09S ● 20 19 95 6.0 20 1 RS20X-SCL L09 ● 20 19 120 6.0 20 CC□□09T3 B78 on 1 BFTX0408NT LT25NT RS22X-SCL L09 ● 22 21 120 6.0 20 1 RS25X-SCL L09 ● 25 24 120 6.0 20 1 RS25M-SCL L09 ● 25.4 24 150 6.0 20 1 Right hand (R) or neutral (N) inserts can be used. D13
