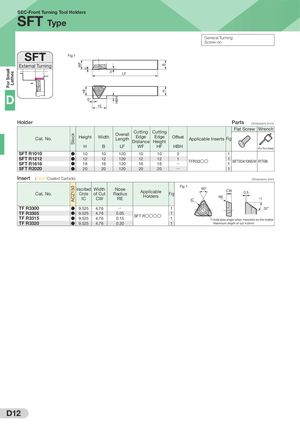

SEC-Front Turning Tool Holders SFT Type General Turning Screw-on SFT Fig 1 WF External Turning B 0 For Small 3° Lathes LF HF H D HBH 6° 15 Holder Parts Dimensions (mm) Flat Screw Wrench Cutting Cutting Overall Stock Cat. No. Height Width Edge Edge Offset Applicable Inserts Fig Length Distance Height H B LF WF HF HBH (For Torx Holes) SFT R1010 ● 10 10 120 10 10 3 1 SFT R1212 ● 12 12 120 12 12 1 1 TFR33○○ BFTX0410NSW RT08 SFT R1616 ● 16 16 120 16 16 Q 1 SFT R2020 ● 20 20 120 20 20 Q 1 Insert ( Coated Carbide) Dimensions (mm) Fig 1 ACZ150 Inscribed Width Nose 60° CW Applicable 0.5 Cat. No. Circle of Cut Radius Fig Holders RE IC CW RE IC *1 TF R3300 ● 9.525 4.76 Q 1 32° TF R3305 ● 9.525 4.76 0.05 1 SFT R○○○○ TF R3315 ● 9.525 4.76 0.15 1 *1 Indicates angle when mounted on the holder TF R3320 ● 9.525 4.76 0.20 1 Maximum depth of cut 4.0mm D12
