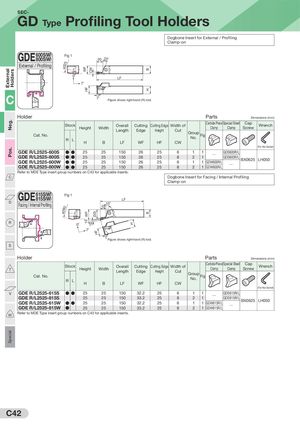

SEC- GD Type Profiling Tool Holders Dogbone Insert for External / Profiling Clamp-on GDE 600S W 800S W ( ) ( ) Fig 1 ø 325 20 25˚ External / Profiling WF CW B External Holders 0˚ LF 7˚ HF H C 7˚ Figure shows right-hand (R) tool. Holder Parts  Dimensions (mm) Neg. Carbide Piece Special Steel Cap Stock Overall Cutting Cutting Edge Width of Wrench Height Width Clamp Clamp Screw Length Edge Height Cut Group Cat. No. Fig No. R L H B LF WF HF CW (For Hex Socket) Pos. GDE R/L2525-600S ● ● 25 25 150 26 25 6 1 1 GDS600R/L Q GDE R/L2525-800S ● ● 25 25 150 26 25 8 2 1 GDS800R/L BX0625 LH050 GDE R/L2525-600W ● ● 25 25 150 26 25 6 1 1 GDW600R/L Q GDE R/L2525-800W ● ● 25 25 150 26 25 8 2 1 GDW800R/L Refer to MDE Type insert group numbers on C43 for applicable inserts. C Dogbone Insert for Facing / Internal Profiling Clamp-on D GDE 615S W 815S W ( ) ( ) Fig 1 15˚ LF Facing / Internal Profiling 19 ø280 (30) 15˚ WF B R CW H 0˚ 7˚ HF 7˚Figure shows right-hand (R) tool. S Holder Parts  Dimensions (mm) Carbide Piece Special Steel Cap Stock Overall Cutting Cutting Edge Width of Wrench T Height Width Clamp Clamp Screw Length Edge Height Cut Group Cat. No. Fig No. R L H B LF WF HF CW (For Hex Socket) V GDE R/L2525-615S ● ● 25 25 150 32.2 25 6 1 1 GDS615R/L Q GDE R/L2525-815S 25 25 150 33.2 25 8 2 1 GDS815R/L BX0625 LH050 GDE R/L2525-615W ● ● 25 25 150 32.2 25 6 1 1 GDW615R/L Q GDE R/L2525-815W ● 25 25 150 33.2 25 8 2 1 GDW815R/L Refer to MDE Type insert group numbers on C43 for applicable inserts. W Special C42
