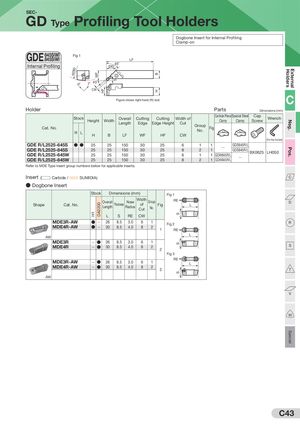

Общий каталог Sumitomo 2019 - 2020 - страница 213

SEC- GD Type Profiling Tool Holders Dogbone Insert for Internal Profiling Clamp-on GDE 645S W 845S W ( ) ( ) Fig 1 45˚ LF Internal Profiling (26) ø 280 External Holders WF B 5 0˚ 7˚ 45˚ CW HF H Figure shows right-hand (R) tool. C Holder Parts  Dimensions (mm) Carbide Piece Special Steel Cap Stock Overall Cutting Cutting Width of Wrench Height Width Clamp Clamp Screw Neg. Length Edge Edge Height Cut Group Cat. No. Fig No. R L H B LF WF HF CW (For Hex Socket) GDE R/L2525-645S ● ● 25 25 150 30 25 6 1 1 GDS645R/L Q Pos. GDE R/L2525-845S 25 25 150 30 25 8 2 1 GDS845R/L BX0625 LH050 GDE R/L2525-645W 25 25 150 30 25 6 1 1 GDW645R/L Q GDE R/L2525-845W 25 25 150 30 25 8 2 1 GDW845R/L Refer to MDE Type insert group numbers below for applicable inserts. Insert ( Carbide / SUMIDIA) C ● Dogbone Insert Stock Dimensions (mm) Fig 1 Width RE Overall Nose Group D Thickness of DA2200 Shape Cat. No. Fig L Length Radius Cut No. H1 S L S RE CW MDE3R-AW ● − 26 8.5 3.0 6 1 Fig 2 R MDE4R-AW ● − 30 8.5 4.0 8 2 1 RE L AW MDE3R − ● 26 8.5 3.0 6 1 S MDE4R − ● 30 8.5 4.0 8 2 S 2 Fig 3 RE MDE3R-AW − ● 26 8.5 3.0 6 1 L MDE4R-AW − ● 30 8.5 4.0 8 2 3 T S AW V W Special C43
