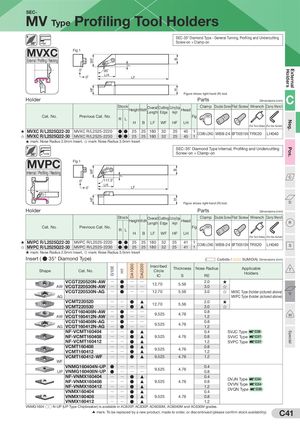

SEC- MV Type Profiling Tool Holders SEC-35° Diamond Type - General Turning, Profiling and Undercutting 95˚ Screw-on + Clamp-on MVXC Fig 1 External / Profiling / Necking WF B 7 0˚ External 95˚ Holders LH 0˚ LF HF H Figure shows right-hand (R) tool. Holder Stock Overall Cutting Cutting Edge Parts  Dimensions (mm) Clamp Double Screw Flat Screw Wrench Clamp Wrench C Height Width Head Length Edge Height Cat. No. Previous Cat. No. Fig R L Neg. H B LF WF HF LH (For Torx Holes) (For Hex Socket) ★ MVXC R/L2525Q22-20 MVXC R/L2525-2220 ● ● 25 25 180 32 25 45 1 CCM8-LONG WB8-24 BFTX0515N TRX20 LH040 ☆ MVXC R/L2525Q22-30 MVXC R/L2525-2230 ● ● 25 25 180 32 25 45 1 ★ mark: Nose Radius 2.0mm Insert, ☆ mark: Nose Radius 3.0mm Insert SEC-35° Diamond Type Internal, Profiling and Undercutting Pos. 117.5˚ Screw-on + Clamp-on MVPC Fig 1 WF Internal / Profiling / Necking B C 7 0˚ 117.5˚ LH 0˚ LF HF H Figure shows right-hand (R) tool. D Holder Parts  Dimensions (mm) Stock Overall Cutting Cutting Edge Clamp Double Screw Flat Screw Wrench Clamp Wrench Height Width Head R Length Edge Height Cat. No. Previous Cat. No. Fig R L H B LF WF HF LH (For Torx Holes) (For Hex Socket) ★ MVPC R/L2525Q22-20 MVPC R/L2525-2220 ● ● 25 25 180 32 25 41 1 CCM8-LONG WB8-24 BFTX0515N TRX20 LH040 S ☆ MVPC R/L2525Q22-30 MVPC R/L2525-2230 ● ● 25 25 180 32 25 41 1 ★ mark: Nose Radius 2.0mm Insert, ☆ mark: Nose Radius 3.0mm Insert Insert ( ● 35° Diamond Type) ( Carbide / SUMIDIA) Dimensions (mm) Inscribed DA1000 DA2200 G10E Thickness Nose Radius Applicable T H1 Shape Cat. No. Circle Holders IC S RE VCGT220520N-AW Q ● Q Q 2.0 ★ 12.70 5.56 AW VCGT220530N-AW Q ● Q Q 3.0 ☆ VCGT220530N-AG Q ● Q Q 12.70 5.56 3.0 ☆ MVXC Type (holder pictured above) V AG MVPC Type (holder pictured above) VCMT220520 Q Q ● F 2.0 ★ 12.70 5.56 VCMT220530 Q Q ● F 3.0 ☆ VCGT160408N-AW Q ● Q Q 0.8 9.525 4.76 W AW VCGT160412N-AW Q ● Q Q 1.2 VCGT160408N-AG Q ● Q Q 0.8 9.525 4.76 AG VCGT160412N-AG Q ● Q Q 1.2 NF-VCMT160404 Q Q ● F 0.4 SVJC Type C36 Special NF-VCMT160408 Q Q ● F 9.525 4.76 0.8 SVVC Type C37 NF-VCMT160412 Q Q ● F 1.2 SVPC Type C37 VCMT160408 Q Q ● F 0.8 9.525 4.76 VCMT160412 Q Q ● F 1.2 VCMT160412-WF Q Q ● F 9.525 4.76 1.2 WF VNMG160404N-UP ● Q Q Q 0.4 9.525 4.76 UP VNMG160408N-UP ● Q Q Q 0.8 NF-VNMX160404 Q Q ● F 0.4 DVJN Type C34 NF-VNMX160408 Q Q ● F 9.525 4.76 0.8 DVVN Type C34 NF-VNMX160412 Q Q ● F 1.2 DVQN Type C35 VNMX160404 Q Q ● F 0.4 VNMX160408 Q Q ● F 9.525 4.76 0.8 VNMX160412 Q Q ● F 1.2 VNMG1604 ○○ N-UP (UP Type Chipbreaker) is available in AC820P, AC830P, AC6030M, AC6040M and AC630M grades. ▲ mark: To be replaced by a new product, made to order, or discontinued (please confirm stock availability). C41
