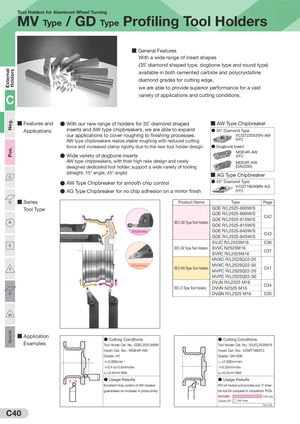

External HoldersNeg.Pos.Special Tool Holders for Aluminum Wheel Turning MV Type / GD Type Profiling Tool Holders ■ General Features With a wide range of insert shapes (35˚ diamond shaped type, dogbone type and round type) available in both cemented carbide and polycrystalline diamond grades for cutting edge, we are able to provide superior performance for a vast C variety of applications and cutting conditions. ■ Features and ● With our new range of holders for 35˚ diamond shaped ■ AW Type Chipbreaker Applications inserts and AW type chipbreakers, we are able to expand ● 35° Diamond Type our applications to cover roughing to finishing processes. VCGT220520N-AW AW type chipbreakers realize stable roughing with reduced cutting (H1) force and increased clamp rigidity due to the new tool holder design ● Dogbone Insert MDE4R-AW ● Wide variety of dogbone inserts (H1) AW type chipbreakers, with their high rake design and newly MDE4R-AW designed dedicated tool holder, support a wide variety of tooling (DA2200) (straight, 15° angle, 45° angle)C ■ AG Type Chipbreaker ● AW Type Chipbreaker for smooth chip control ● 35° Diamond Type VCGT160408N-AG ● AG Type Chipbreaker for no chip adhesion on a mirror finish (H1) D ■ Series Product Name Type Page Tool Type GDE R/L2525-600W/S GDE R/L2525-800W/S C42 GDE R/L2525-615W/S R SEC-GD Type Tool Holders GDE R/L2525-815W/S GD Type Tool Holder GDE R/L2525-645W/S C43 GDE R/L2525-845W/S SVJC R/L2525M16 C36 S SEC-SV Type Tool Holders SVVC N2525M16 C37 SVPC R/L2525M16 MVXC R/L2525Q22-20 MV Type Tool Holder MVXC R/L2525Q22-30 T SEC-MV Type Tool Holders MVPC R/L2525Q22-20 C41 MVPC R/L2525Q22-30 DVJN R/L2525 M16SEC-D Type Tool HoldersDVVN N2525 M16C34 V DVQN R/L2525 M16 C35 RP Type Tool Holders W ■ Application ● Cutting Conditions ● Cutting Conditions Examples Tool Holder Cat. No.: GDEL2525-800W Tool Holder Cat. No.: SVJCL2525M16 Insert Cat. No.: MDE4R-AW Insert Cat. No.: VCMT160412 Grade: H1 Grade: DA1000 n=2,000min-1 vc=2,500m/min f=0.4 to 0.6mm/rev f=0.35mm/rev ap=2.0mm Wet ap=0.2mm Wet ● Usage Results ● Usage Results Excellent chip control of AW breaker Will not fracture and provides over 17 times guarantees an increase in productivity. the tool life compared to competitors' PCDs. DA1000 3,500 holes Competitor's PCD 200 holes Tool Life C40
