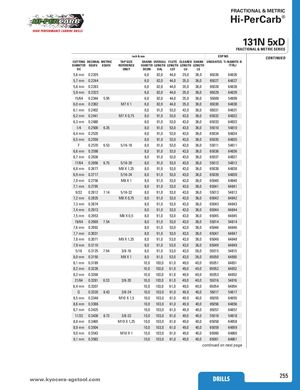

Общий каталог SGS 2021 - страница 255

FRACTIONAL & METRIC Hi-PerCarb® 131N 5xD FRACTIONAL & METRIC SERIES inch & mm EDP NO. CONTINUED CUTTING DECIMAL METRIC TAP SIZE SHANK OVERALL FLUTE CLEARED SHANK UNCOATED Ti-NAMITE-B DIAMETER EQUIV. EQUIV. REFERENCE DIAMETER LENGTH LENGTH LENGTH LENGTH (TiB2) DC ONLY DCON OAL LCF LU LS 5,6 mm 0.2205 6,0 82,0 44,0 35,0 36,0 65026 64826 5,7 mm 0.2244 6,0 82,0 44,0 35,0 36,0 65027 64827 5,8 mm 0.2283 6,0 82,0 44,0 35,0 36,0 65028 64828 5,9 mm 0.2323 6,0 82,0 44,0 35,0 36,0 65029 64829 15/64 0.2344 5.95 6,0 82,0 44,0 35,0 36,0 55009 54809 6,0 mm 0.2362 M7 X 1 6,0 82,0 44,0 35,0 36,0 65030 64830 6,1 mm 0.2402 8,0 91,0 53,0 43,0 36,0 65031 64831 6,2 mm 0.2441 M7 X 0,75 8,0 91,0 53,0 43,0 36,0 65032 64832 6,3 mm 0.2480 8,0 91,0 53,0 43,0 36,0 65033 64833 1/4 0.2500 6.35 8,0 91,0 53,0 43,0 36,0 55010 54810 6,4 mm 0.2520 8,0 91,0 53,0 43,0 36,0 65034 64834 6,5 mm 0.2559 8,0 91,0 53,0 43,0 36,0 65035 64835 F 0.2570 6.53 5/16-18 8,0 91,0 53,0 43,0 36,0 55011 54811 6,6 mm 0.2598 8,0 91,0 53,0 43,0 36,0 65036 64836 6,7 mm 0.2638 8,0 91,0 53,0 43,0 36,0 65037 64837 17/64 0.2656 6.75 5/16-20 8,0 91,0 53,0 43,0 36,0 55012 54812 6,8 mm 0.2677 M8 X 1,25 8,0 91,0 53,0 43,0 36,0 65038 64838 6,9 mm 0.2717 5/16-24 8,0 91,0 53,0 43,0 36,0 65039 64839 7,0 mm 0.2756 M8 X 1 8,0 91,0 53,0 43,0 36,0 65040 64840 7,1 mm 0.2795 8,0 91,0 53,0 43,0 36,0 65041 64841 9/32 0.2812 7.14 5/16-32 8,0 91,0 53,0 43,0 36,0 55013 54813 7,2 mm 0.2835 M8 X 0,75 8,0 91,0 53,0 43,0 36,0 65042 64842 7,3 mm 0.2874 8,0 91,0 53,0 43,0 36,0 65043 64843 7,4 mm 0.2913 8,0 91,0 53,0 43,0 36,0 65044 64844 7,5 mm 0.2953 M8 X 0,5 8,0 91,0 53,0 43,0 36,0 65045 64845 19/64 0.2969 7.54 8,0 91,0 53,0 43,0 36,0 55014 54814 7,6 mm 0.2992 8,0 91,0 53,0 43,0 36,0 65046 64846 7,7 mm 0.3031 8,0 91,0 53,0 43,0 36,0 65047 64847 7,8 mm 0.3071 M9 X 1,25 8,0 91,0 53,0 43,0 36,0 65048 64848 7,9 mm 0.3110 8,0 91,0 53,0 43,0 36,0 65049 64849 5/16 0.3125 7.94 3/8-16 8,0 91,0 53,0 43,0 36,0 55015 54815 8,0 mm 0.3150 M9 X 1 8,0 91,0 53,0 43,0 36,0 65050 64850 8,1 mm 0.3189 10,0 103,0 61,0 49,0 40,0 65051 64851 8,2 mm 0.3228 10,0 103,0 61,0 49,0 40,0 65052 64852 8,3 mm 0.3268 10,0 103,0 61,0 49,0 40,0 65053 64853 21/64 0.3281 8.33 3/8-20 10,0 103,0 61,0 49,0 40,0 55016 54816 8,4 mm 0.3307 10,0 103,0 61,0 49,0 40,0 65054 64854 Q 0.3320 8.43 3/8-24 10,0 103,0 61,0 49,0 40,0 55017 54817 8,5 mm 0.3346 M10 X 1,5 10,0 103,0 61,0 49,0 40,0 65055 64855 8,6 mm 0.3386 10,0 103,0 61,0 49,0 40,0 65056 64856 8,7 mm 0.3425 10,0 103,0 61,0 49,0 40,0 65057 64857 11/32 0.3438 8.73 3/8-32 10,0 103,0 61,0 49,0 40,0 55018 54818 8,8 mm 0.3465 M10 X 1,25 10,0 103,0 61,0 49,0 40,0 65058 64858 8,9 mm 0.3504 10,0 103,0 61,0 49,0 40,0 65059 64859 9,0 mm 0.3543 M10 X 1 10,0 103,0 61,0 49,0 40,0 65060 64860 9,1 mm 0.3583 10,0 103,0 61,0 49,0 40,0 65061 64861 continued on next page www.kyoceraD-sRgILsLtoSol.com DRILLS 255
