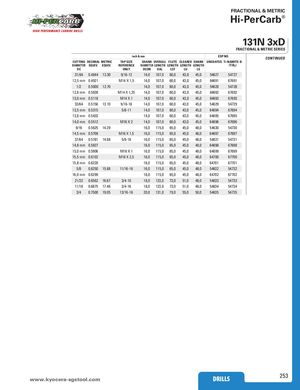

Общий каталог SGS 2021 - страница 253

FRACTIONAL & METRIC Hi-PerCarb® 131N 3xD FRACTIONAL & METRIC SERIES inch & mm EDP NO. CONTINUED CUTTING DECIMAL METRIC TAP SIZE SHANK OVERALL FLUTE CLEARED SHANK UNCOATED Ti-NAMITE-B DIAMETER EQUIV. EQUIV. REFERENCE DIAMETER LENGTH LENGTH LENGTH LENGTH (TiB2) DC ONLY DCON OAL LCF LU LS 31/64 0.4844 12.30 9/16-12 14,0 107,0 60,0 43,0 45,0 54627 54727 12,5 mm 0.4921 M14 X 1,5 14,0 107,0 60,0 43,0 45,0 64691 67691 1/2 0.5000 12.70 14,0 107,0 60,0 43,0 45,0 54628 54728 12,8 mm 0.5039 M14 X 1,25 14,0 107,0 60,0 43,0 45,0 64692 67692 13,0 mm 0.5118 M14 X 1 14,0 107,0 60,0 43,0 45,0 64693 67693 33/64 0.5156 13.10 9/16-18 14,0 107,0 60,0 43,0 45,0 54629 54729 13,5 mm 0.5315 5/8-11 14,0 107,0 60,0 43,0 45,0 64694 67694 13,8 mm 0.5433 14,0 107,0 60,0 43,0 45,0 64695 67695 14,0 mm 0.5512 M16 X 2 14,0 107,0 60,0 43,0 45,0 64696 67696 9/16 0.5625 14.29 16,0 115,0 65,0 45,0 48,0 54630 54730 14,5 mm 0.5709 M16 X 1,5 16,0 115,0 65,0 45,0 48,0 64697 67697 37/64 0.5781 14.68 5/8-18 16,0 115,0 65,0 45,0 48,0 54631 54731 14,8 mm 0.5827 16,0 115,0 65,0 45,0 48,0 64698 67698 15,0 mm 0.5906 M16 X 1 16,0 115,0 65,0 45,0 48,0 64699 67699 15,5 mm 0.6102 M18 X 2,5 16,0 115,0 65,0 45,0 48,0 64700 67700 15,8 mm 0.6220 16,0 115,0 65,0 45,0 48,0 64701 67701 5/8 0.6250 15.88 11/16-16 16,0 115,0 65,0 45,0 48,0 54632 54732 16,0 mm 0.6299 16,0 115,0 65,0 45,0 48,0 64702 67702 21/32 0.6562 16.67 3/4-10 18,0 123,0 73,0 51,0 48,0 54633 54733 11/16 0.6875 17.46 3/4-16 18,0 123,0 73,0 51,0 48,0 54634 54734 3/4 0.7500 19.05 13/16-16 20,0 131,0 79,0 55,0 50,0 54635 54735 www.kyoceraD-sRgILsLtoSol.com DRILLS 253
