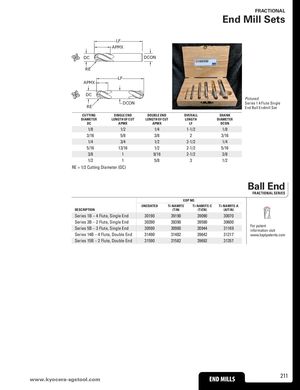

FRACTIONAL End Mill Sets LF APMX DC DCON RE LF APMX DC Pictured: DCON Series 1 4 Flute Single RE End Ball Endmill Set CUTTING SINGLE END DOUBLE END OVERALL SHANK DIAMETER LENGTH OF CUT LENGTH OF CUT LENGTH DIAMETER DC APMX APMX LF DCON 1/8 1/2 1/4 1-1/2 1/8 3/16 5/8 3/8 2 3/16 1/4 3/4 1/2 2-1/2 1/4 5/16 13/16 1/2 2-1/2 5/16 3/8 1 9/16 2-1/2 3/8 1/2 1 5/8 3 1/2 RE = 1/2 Cutting Diameter (DC) Ball End FRACTIONAL SERIES EDP NO. UNCOATED Ti-NAMITE Ti-NAMITE-C Ti-NAMITE-A DESCRIPTION (TiN) (TiCN) (AlTiN) Series 1B – 4 Flute, Single End 30190 39190 39090 30070 Series 3B – 2 Flute, Single End 30390 39390 39590 30600 Series 5B – 3 Flute, Single End 30590 30900 30944 31169 For patentinformation visit Series 14B – 4 Flute, Double End 31490 31482 39642 31217 www.ksptpatents.com Series 15B – 2 Flute, Double End 31590 31582 39692 31357 www.kyocera-sEgNsDtoMoIl.LcLoSm END MILLS 211
