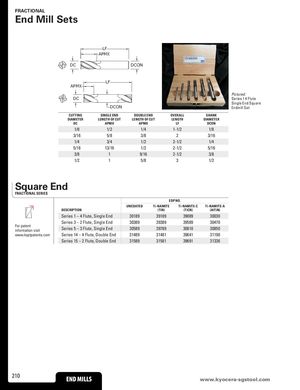

FRACTIONAL End Mill Sets LF APMX DC DCON LF APMX Pictured: DC Series 1 4 Flute Single End Square DCON Endmill Set CUTTING SINGLE END DOUBLE END OVERALL SHANK DIAMETER LENGTH OF CUT LENGTH OF CUT LENGTH DIAMETER DC APMX APMX LF DCON 1/8 1/2 1/4 1-1/2 1/8 3/16 5/8 3/8 2 3/16 1/4 3/4 1/2 2-1/2 1/4 5/16 13/16 1/2 2-1/2 5/16 3/8 1 9/16 2-1/2 3/8 1/2 1 5/8 3 1/2 Square End FRACTIONAL SERIES EDP NO. UNCOATED Ti-NAMITE Ti-NAMITE-C Ti-NAMITE-A DESCRIPTION (TiN) (TiCN) (AlTiN) Series 1 – 4 Flute, Single End 30189 39189 39089 30030 Series 3 – 2 Flute, Single End 30389 39389 39589 30470 For patentinformation visitSeries 5 – 3 Flute, Single End 30589 39789 30810 30850 www.ksptpatents.com Series 14 – 4 Flute, Double End 31489 31481 39641 31190 Series 15 – 2 Flute, Double End 31589 31581 39691 31336 210 END MILLS wwENwD.kMyIoLcLSera-sgstool.com
