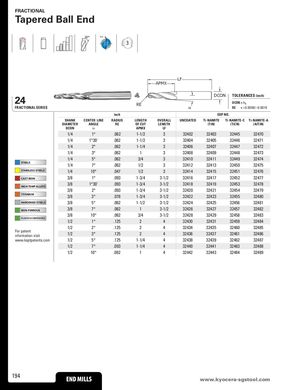

Общий каталог SGS 2021 - страница 194

FRACTIONAL Tapered Ball End 28° POS 3 LF APMX 24 DCON TOLERANCES (inch)REDCON = h6 FRACTIONAL SERIES RE = +0.0000/–0.0010 inch EDP NO. SHANK CENTER LINE RADIUS LENGTH OVERALL UNCOATED Ti-NAMITE Ti-NAMITE-C Ti-NAMITE-A DIAMETER ANGLE RE OF CUT LENGTH (TiN) (TiCN) (AlTiN) DCON α APMX LF 1/4 1° .062 1-1/2 3 32402 32403 32445 32470 1/4 1°30' .062 1-1/2 3 32404 32405 32446 32471 1/4 2° .062 1-1/4 3 32406 32407 32447 32472 1/4 3° .062 1 3 32408 32409 32448 32473 1/4 5° .062 3/4 3 32410 32411 32449 32474 STEELS 1/4 7° .062 1/2 3 32412 32413 32450 32475 STAINLESS STEELS 1/4 10° .047 1/2 3 32414 32415 32451 32476 CAST IRON 3/8 1° .093 1-3/4 3-1/2 32416 32417 32452 32477 3/8 1°30' .093 1-3/4 3-1/2 32418 32419 32453 32478 HIGH TEMP ALLOYS 3/8 2° .093 1-3/4 3-1/2 32420 32421 32454 32479 TITANIUM 3/8 3° .078 1-3/4 3-1/2 32422 32423 32455 32480 HARDENED STEELS 3/8 5° .062 1-1/2 3-1/2 32424 32425 32456 32481 NON-FERROUS 3/8 7° .062 1 3-1/2 32426 32427 32457 32482 3/8 10° .062 3/4 3-1/2 32428 32429 32458 32483 PLASTICS/COMPOSITES 1/2 1° .125 2 4 32430 32431 32459 32484 1/2 2° .125 2 4 32434 32435 32460 32485 For patentinformation visit 1/2 3° .125 2 4 32436 32437 32461 32486 www.ksptpatents.com 1/2 5° .125 1-1/4 4 32438 32439 32462 32487 1/2 7° .093 1-1/4 4 32440 32441 32463 32488 1/2 10° .062 1 4 32442 32443 32464 32489 194 END MILLS wwENwD.kMyIoLcLSera-sgstool.com
