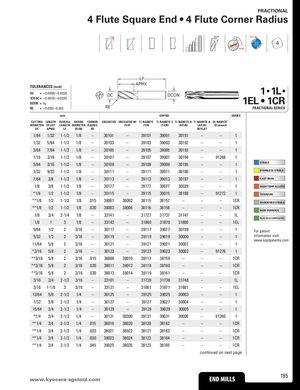

FRACTIONAL 4 Flute Square End • 4 Flute Corner Radius 30° POS 4 ≠ LF TOLERANCES (inch) APMXDC= +0.0000/–0.0020DCDCON 1 • 1L •  1CR DC = –0.0010/–0.0020DCON=h6 1EL • 1CR  RE = +0.000/–0.002 RE FRACTIONAL SERIES inch EDP NO. SERIES CUTTING LENGTH OVERALL SHANK CORNER UNCOATED UNCOATED W/ Ti-NAMITE Ti-NAMITE-C Ti-NAMITE-A Ti-NAMITE-A Di-NAMITE® DIAMETER OF CUT LENGTH DIAMETER RADIUS FLAT (TiN) (TiCN) (AlTiN) (AlTiN) (Diamond) DC APMX LF DCON RE W/FLAT 1/64 1/32 1-1/2 1/8 – 30101 – 39101 39001 30191 – – 1 1/32 5/64 1-1/2 1/8 – 30103 – 39103 39003 30192 – – 1 3/64 7/64 1-1/2 1/8 – 30105 – 39105 39005 30193 – – 1 1/16 3/16 1-1/2 1/8 – 30107 – 39107 39007 30194 – 91268 1 5/64 3/16 1-1/2 1/8 – 30109 – 39109 39009 30195 – – 1 STEELS 3/32 9/32 1-1/2 1/8 – 30111 – 39111 39011 30196 – – 1 STAINLESS STEELS 7/64 3/8 1-1/2 1/8 – 30113 – 39113 39013 30197 – – 1 CAST IRON 1/8 3/8 1-1/2 1/8 – 30177 – 39177 39077 30029 – – 1 HIGH TEMP ALLOYS *1/8 1/2 1-1/2 1/8 – 30115 – 39115 39015 30198 – 91272 1 TITANIUM **1/8 1/2 1-1/2 1/8 .015 38001 38002 38115 38157 – – – 1CR HARDENED STEELS **1/8 1/2 1-1/2 1/8 .020 38003 38004 38116 38158 – – – 1CR NON-FERROUS 1/8 3/4 2-1/4 1/8 – 33141 – 31727 31737 31747 – – 1L PLASTICS/COMPOSITES 1/8 1 3 1/8 – 33143 – 31860 31870 31880 – – 1EL 9/64 1/2 2 3/16 – 30117 – 39117 39017 30199 – – 1 For patent 5/32 1/2 2 3/16 – 30119 – 39119 39019 30000 – – 1 information visit www.ksptpatents.com 11/64 5/8 2 3/16 – 30121 – 39121 39021 30001 – – 1 *3/16 5/8 2 3/16 – 30123 – 39123 39023 30002 – 91276 1 **3/16 5/8 2 3/16 .015 38009 38010 38117 38159 – – – 1CR **3/16 5/8 2 3/16 .020 38011 38012 38118 38160 – – – 1CR **3/16 5/8 2 3/16 .030 38013 38014 38119 38161 – – – 1CR 3/16 3/4 2-1/2 3/16 – 33101 – 31728 31738 31748 – – 1L 3/16 1-1/8 3 3/16 – 33121 – 31861 31871 31881 – – 1EL 13/64 5/8 2-1/2 1/4 – 30125 – 39125 39025 30003 – – 1 7/32 5/8 2-1/2 1/4 – 30127 – 39127 39027 30004 – – 1 15/64 3/4 2-1/2 1/4 – 30129 – 39129 39029 30005 – – 1 *1/4 3/4 2-1/2 1/4 – 30131 30300 39131 39031 30006 – 91280 1 **1/4 3/4 2-1/2 1/4 .015 38019 38020 38120 38162 – – – 1CR **1/4 3/4 2-1/2 1/4 .020 38021 38022 38121 38163 – – – 1CR **1/4 3/4 2-1/2 1/4 .030 38023 38024 38122 38164 – – – 1CR **1/4 3/4 2-1/2 1/4 .045 38025 38026 38123 38165 – – – 1CR continued on next page www.kyocera-sEgNsDtoMoIl.LcLoSm END MILLS 195
