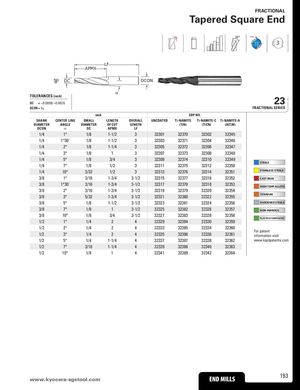

FRACTIONAL Tapered Square End 28° POS 3 LF APMX DC DCON TOLERANCES (inch)DC= –0.0000/–0.0020 23 DCON = h6 FRACTIONAL SERIES inch EDP NO. SHANK CENTER LINE SMALL LENGTH OVERALL UNCOATED Ti-NAMITE Ti-NAMITE-C Ti-NAMITE-A DIAMETER ANGLE DIAMETER OF CUT LENGTH (TiN) (TiCN) (AlTiN) DCON α DC APMX LF 1/4 1° 1/8 1-1/2 3 32301 32370 32302 32345 1/4 1°30' 1/8 1-1/2 3 32303 32371 32304 32346 1/4 2° 1/8 1-1/4 3 32305 32372 32306 32347 1/4 3° 1/8 1 3 32307 32373 32308 32348 1/4 5° 1/8 3/4 3 32309 32374 32310 32349 STEELS 1/4 7° 1/8 1/2 3 32311 32375 32312 32350 1/4 10° 3/32 1/2 3 32313 32376 32314 32351 STAINLESS STEELS 3/8 1° 3/16 1-3/4 3-1/2 32315 32377 32316 32352 CAST IRON 3/8 1°30' 3/16 1-3/4 3-1/2 32317 32378 32318 32353 HIGH TEMP ALLOYS 3/8 2° 3/16 1-3/4 3-1/2 32319 32379 32320 32354 3/8 3° 5/32 1-3/4 3-1/2 32321 32380 32322 32355 TITANIUM 3/8 5° 1/8 1-1/2 3-1/2 32323 32381 32324 32356 HARDENED STEELS 3/8 7° 1/8 1 3-1/2 32325 32382 32326 32357 NON-FERROUS 3/8 10° 1/8 3/4 3-1/2 32327 32383 32328 32358 PLASTICS/COMPOSITES 1/2 1° 1/4 2 4 32329 32384 32330 32359 1/2 2° 1/4 2 4 32333 32385 32334 32360 1/2 3° 1/4 2 4 32335 32386 32336 32361 For patentinformation visit 1/2 5° 1/4 1-1/4 4 32337 32387 32338 32362 www.ksptpatents.com 1/2 7° 3/16 1-1/4 4 32339 32388 32340 32363 1/2 10° 1/8 1 4 32341 32389 32342 32364 www.kyocera-sEgNsDtoMoIl.LcLoSm END MILLS 193
