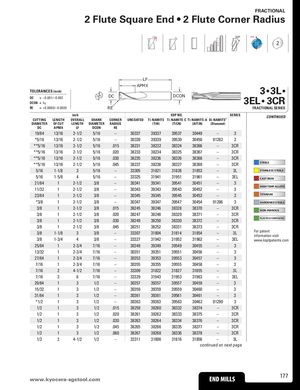

FRACTIONAL 2 Flute Square End • 2 Flute Corner Radius 30° POS 2 LF APMX TOLERANCES (inch) 3 • 3L •  DC = –0.001/–0.002 DCDCON=h6 DCON 3EL • 3CR  RE = +0.0000/–0.0020 RE FRACTIONAL SERIES inch EDP NO. SERIES CONTINUED CUTTING LENGTH OVERALL SHANK CORNER UNCOATED Ti-NAMITE Ti-NAMITE-C Ti-NAMITE-A Di-NAMITE® DIAMETER OF CUT LENGTH DIAMETER RADIUS (TiN) (TiCN) (AlTiN) (Diamond) DC APMX LF DCON RE 19/64 13/16 2-1/2 5/16 – 30337 39337 39537 30449 – 3 *5/16 13/16 2-1/2 5/16 – 30339 39339 39539 30450 91282 3 **5/16 13/16 2-1/2 5/16 .015 38231 38232 38324 38366 – 3CR **5/16 13/16 2-1/2 5/16 .020 38233 38234 38325 38367 – 3CR **5/16 13/16 2-1/2 5/16 .030 38235 38236 38326 38368 – 3CR **5/16 13/16 2-1/2 5/16 .045 38237 38238 38327 38369 – 3CR STEELS 5/16 1-1/8 3 5/16 – 33305 31821 31826 31853 – 3L STAINLESS STEELS 5/16 1-5/8 4 5/16 – 33325 31941 31951 31961 – 3EL CAST IRON 21/64 1 2-1/2 3/8 – 30341 39341 39541 30451 – 3 HIGH TEMP ALLOYS 11/32 1 2-1/2 3/8 – 30343 39343 39543 30452 – 3 23/64 1 2-1/2 3/8 – 30345 39345 39545 30453 – 3 TITANIUM *3/8 1 2-1/2 3/8 – 30347 39347 39547 30454 91286 3 HARDENED STEELS 3/8 1 2-1/2 3/8 .015 38245 38246 38328 38370 – 3CR NON-FERROUS 3/8 1 2-1/2 3/8 .020 38247 38248 38329 38371 – 3CR 3/8 1 2-1/2 3/8 .030 38249 38250 38330 38372 – 3CR PLASTICS/COMPOSITES 3/8 1 2-1/2 3/8 .045 38251 38252 38331 38373 – 3CR 3/8 1-1/8 3 3/8 – 33307 31804 31814 31854 – 3L For patentinformation visit 3/8 1-3/4 4 3/8 – 33327 31942 31952 31962 – 3EL www.ksptpatents.com 25/64 1 2-3/4 7/16 – 30349 39349 39549 30455 – 3 13/32 1 2-3/4 7/16 – 30351 39351 39551 30456 – 3 27/64 1 2-3/4 7/16 – 30353 39353 39553 30457 – 3 7/16 1 2-3/4 7/16 – 30355 39355 39555 30458 – 3 7/16 2 4-1/2 7/16 – 33309 31822 31827 31855 – 3L 7/16 3 6 7/16 – 33329 31943 31953 31963 – 3EL 29/64 1 3 1/2 – 30357 39357 39557 30459 – 3 15/32 1 3 1/2 – 30359 39359 39559 30460 – 3 31/64 1 3 1/2 – 30361 39361 39561 30461 – 3 *1/2 1 3 1/2 – 30363 39363 39563 30462 91290 3 1/2 1 3 1/2 .015 38259 38260 38332 38374 – 3CR 1/2 1 3 1/2 .020 38261 38262 38333 38375 – 3CR 1/2 1 3 1/2 .030 38263 38264 38334 38376 – 3CR 1/2 1 3 1/2 .045 38265 38266 38335 38377 – 3CR 1/2 1 3 1/2 .060 38267 38268 38336 38378 – 3CR 1/2 2 4-1/2 1/2 – 33311 31806 31816 31856 – 3L continued on next page www.kyocera-sEgNsDtoMoIl.LcLoSm END MILLS 177
