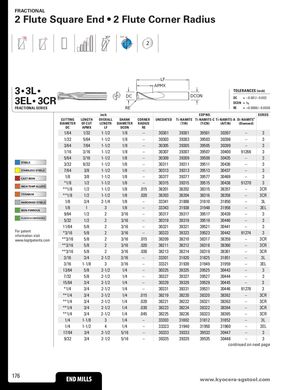

FRACTIONAL 2 Flute Square End • 2 Flute Corner Radius 30° POS 2 LF APMX 3 • 3L •  TOLERANCES (inch) 3EL • 3CR  DC DCON DC = –0.001/–0.002DCON=h6 FRACTIONAL SERIES RE RE = +0.0000/–0.0020 inch EDP NO. SERIES CUTTING LENGTH OVERALL SHANK CORNER UNCOATED Ti-NAMITE Ti-NAMITE-C Ti-NAMITE-A Di-NAMITE® DIAMETER OF CUT LENGTH DIAMETER RADIUS (TiN) (TiCN) (AlTiN) (Diamond) DC APMX LF DCON RE 1/64 1/32 1-1/2 1/8 – 30301 39301 39501 30397 – 3 1/32 5/64 1-1/2 1/8 – 30303 39303 39503 30398 – 3 3/64 7/64 1-1/2 1/8 – 30305 39305 39505 30399 – 3 1/16 3/16 1-1/2 1/8 – 30307 39307 39507 30400 91266 3 5/64 3/16 1-1/2 1/8 – 30309 39309 39509 30435 – 3 STEELS 3/32 9/32 1-1/2 1/8 – 30311 39311 39511 30436 – 3 STAINLESS STEELS 7/64 3/8 1-1/2 1/8 – 30313 39313 39513 30437 – 3 CAST IRON 1/8 3/8 1-1/2 1/8 – 30377 39377 39577 30469 – 3 *1/8 1/2 1-1/2 1/8 – 30315 39315 39515 30438 91270 3 HIGH TEMP ALLOYS **1/8 1/2 1-1/2 1/8 .015 38201 38202 38315 38357 – 3CR TITANIUM **1/8 1/2 1-1/2 1/8 .020 38203 38204 38316 38358 – 3CR HARDENED STEELS 1/8 3/4 2-1/4 1/8 – 33341 31800 31810 31850 – 3L 1/8 1 3 1/8 – 33343 31938 31948 31958 – 3EL NON-FERROUS 9/64 1/2 2 3/16 – 30317 39317 39517 30439 – 3 PLASTICS/COMPOSITES 5/32 1/2 2 3/16 – 30319 39319 39519 30440 – 3 11/64 5/8 2 3/16 – 30321 39321 39521 30441 – 3 For patent *3/16 5/8 2 3/16 – 30323 39323 39523 30442 91274 3 information visit www.ksptpatents.com **3/16 5/8 2 3/16 .015 38209 38210 38317 38359 – 3CR **3/16 5/8 2 3/16 .020 38211 38212 38318 38360 – 3CR **3/16 5/8 2 3/16 .030 38213 38214 38319 38361 – 3CR 3/16 3/4 2-1/2 3/16 – 33301 31820 31825 31851 – 3L 3/16 1-1/8 3 3/16 – 33321 31939 31949 31959 – 3EL 13/64 5/8 2-1/2 1/4 – 30325 39325 39525 30443 – 3 7/32 5/8 2-1/2 1/4 – 30327 39327 39527 30444 – 3 15/64 3/4 2-1/2 1/4 – 30329 39329 39529 30445 – 3 *1/4 3/4 2-1/2 1/4 – 30331 39331 39531 30446 91278 3 **1/4 3/4 2-1/2 1/4 .015 38219 38220 38320 38362 – 3CR **1/4 3/4 2-1/2 1/4 .020 38221 38222 38321 38363 – 3CR **1/4 3/4 2-1/2 1/4 .030 38223 38224 38322 38364 – 3CR **1/4 3/4 2-1/2 1/4 .045 38225 38226 38323 38365 – 3CR 1/4 1-1/8 3 1/4 – 33303 31802 31812 31852 – 3L 1/4 1-1/2 4 1/4 – 33323 31940 31950 31960 – 3EL 17/64 3/4 2-1/2 5/16 – 30333 39333 39533 30447 – 3 9/32 3/4 2-1/2 5/16 – 30335 39335 39535 30448 – 3 continued on next page 176 END MILLS wwENwD.kMyIoLcLSera-sgstool.com
