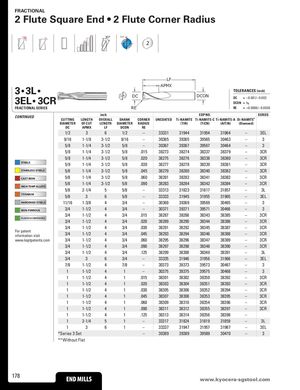

FRACTIONAL 2 Flute Square End • 2 Flute Corner Radius 30° POS 2 LF APMX 3 • 3L •  TOLERANCES (inch) 3EL • 3CR  DC DCON DC = –0.001/–0.002DCON=h6 FRACTIONAL SERIES RE RE = +0.0000/–0.0020 CONTINUED inch EDP NO. SERIESCUTTINGLENGTHOVERALLSHANKCORNERUNCOATEDTi-NAMITETi-NAMITE-CTi-NAMITE-ADi-NAMITE® DIAMETER OF CUT LENGTH DIAMETER RADIUS (TiN) (TiCN) (AlTiN) (Diamond) DC APMX LF DCON RE 1/2 3 6 1/2 – 33331 31944 31954 31964 – 3EL 9/16 1-1/8 3-1/2 9/16 – 30365 39365 39565 30463 – 3 5/8 1-1/4 3-1/2 5/8 – 30367 39367 39567 30464 – 3 5/8 1-1/4 3-1/2 5/8 .015 38273 38274 38337 38379 – 3CR 5/8 1-1/4 3-1/2 5/8 .020 38275 38276 38338 38380 – 3CR STEELS 5/8 1-1/4 3-1/2 5/8 .030 38277 38278 38339 38381 – 3CR STAINLESS STEELS 5/8 1-1/4 3-1/2 5/8 .045 38279 38280 38340 38382 – 3CR CAST IRON 5/8 1-1/4 3-1/2 5/8 .060 38281 38282 38341 38383 – 3CR 5/8 1-1/4 3-1/2 5/8 .090 38283 38284 38342 38384 – 3CR HIGH TEMP ALLOYS 5/8 2-1/4 5 5/8 – 33313 31823 31817 31857 – 3L TITANIUM 5/8 3 6 5/8 – 33333 31945 31955 31965 – 3EL HARDENED STEELS 11/16 1-3/8 4 3/4 – 30369 39369 39569 30465 – 3 NON-FERROUS 3/4 1-1/2 4 3/4 – 30371 39371 39571 30466 – 3 3/4 1-1/2 4 3/4 .015 38287 38288 38343 38385 – 3CR PLASTICS/COMPOSITES 3/4 1-1/2 4 3/4 .020 38289 38290 38344 38386 – 3CR 3/4 1-1/2 4 3/4 .030 38291 38292 38345 38387 – 3CR For patentinformation visit 3/4 1-1/2 4 3/4 .045 38293 38294 38346 38388 – 3CR www.ksptpatents.com 3/4 1-1/2 4 3/4 .060 38295 38296 38347 38389 – 3CR 3/4 1-1/2 4 3/4 .090 38297 38298 38348 38390 – 3CR 3/4 1-1/2 4 3/4 .125 38299 38300 38349 38391 – 3L 3/4 3 6 3/4 – 33335 31946 31956 31966 – 3EL 7/8 1-1/2 4 7/8 – 30373 39373 39573 30467 – 3 1 1-1/2 4 1 – 30375 39375 39575 30468 – 3 1 1-1/2 4 1 .015 38301 38302 38350 38392 – 3CR 1 1-1/2 4 1 .020 38303 38304 38351 38393 – 3CR 1 1-1/2 4 1 .030 38305 38306 38352 38394 – 3CR 1 1-1/2 4 1 .045 38307 38308 38353 38395 – 3CR 1 1-1/2 4 1 .060 38309 38310 38354 38396 – 3CR 1 1-1/2 4 1 .090 38311 38312 38355 38397 – 3CR 1 1-1/2 4 1 .125 38313 38314 38356 38398 – 1 2-1/4 5 1 – 33317 31824 31819 31859 – 3L 1 3 6 1 – 33337 31947 31957 31967 – 3EL *Series 3 Set – 30389 39389 39589 30470 – 3 **Without Flat 178 END MILLS wwENwD.kMyIoLcLSera-sgstool.com
