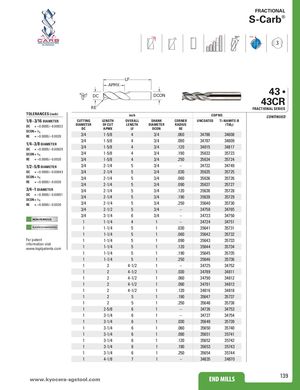

Общий каталог SGS 2021 - страница 139

FRACTIONAL S-Carb® 38° POS ® 3 LF APMX DC DCON 43 • 43CR RE FRACTIONAL SERIES TOLERANCES (inch) inch EDP NO. CONTINUED 1/8–3/16 DIAMETER CUTTING LENGTH OVERALL SHANK CORNER UNCOATED Ti-NAMITE-B DC = +0.0000/–0.00032 DIAMETER OF CUTDCAPMX LENGTH DIAMETER RADIUSLFDCONRE (TiB2) DCON = h6RE= +0.0000/–0.0020 3/4 1-5/8 4 3/4 .060 34786 34808 1/4–3/8 DIAMETER 3/4 1-5/8 4 3/4 .090 34787 34809 DC = +0.0000/–0.00035 3/4 1-5/8 4 3/4 .120 34815 34817 DCON = h6 3/4 1-5/8 4 3/4 .190 35633 35723 RE = +0.0000/–0.0020 3/4 1-5/8 4 3/4 .250 35634 35724 1/2–5/8 DIAMETER 3/4 2-1/4 5 3/4 – 34722 34749 DC = +0.0000/–0.00043 3/4 2-1/4 5 3/4 .030 35635 35725 DCON = h6 3/4 2-1/4 5 3/4 .060 35636 35726 RE = +0.0000/–0.0020 3/4 2-1/4 5 3/4 .090 35637 35727 3/4–1 DIAMETER 3/4 2-1/4 5 3/4 .120 35638 35728 DC = +0.0000/–0.00051 3/4 2-1/4 5 3/4 .190 35639 35729 DCON = h6 RE = +0.0000/–0.0020 3/4 2-1/4 5 3/4 .250 35640 35730 3/4 2-1/2 5 3/4 – 34758 34765 3/4 3-1/4 6 3/4 – 34723 34750 NON-FERROUS 1 1-1/4 4 1 – 34724 34751 PLASTICS/COMPOSITES 1 1-1/4 5 1 .030 35641 35731 1 1-1/4 5 1 .060 35642 35732 For patent 1 1-1/4 5 1 .090 35643 35733 information visitwww.ksptpatents.com 1 1-1/4 5 1 .120 35644 35734 1 1-1/4 5 1 .190 35645 35735 1 1-1/4 5 1 .250 35646 35736 1 2 4-1/2 1 – 34725 34752 1 2 4-1/2 1 .030 34789 34811 1 2 4-1/2 1 .060 34790 34812 1 2 4-1/2 1 .090 34791 34813 1 2 4-1/2 1 .120 34816 34818 1 2 5 1 .190 35647 35737 1 2 5 1 .250 35648 35738 1 2-5/8 6 1 – 34726 34753 1 3-1/4 6 1 – 34727 34754 1 3-1/4 6 1 .030 35649 35739 1 3-1/4 6 1 .060 35650 35740 1 3-1/4 6 1 .090 35651 35741 1 3-1/4 6 1 .120 35652 35742 1 3-1/4 6 1 .190 35653 35743 1 3-1/4 6 1 .250 35654 35744 1 4-1/8 7 1 – 34835 34870 www.kyocerEaN-DsgMstILoLoSl.com END MILLS 139
