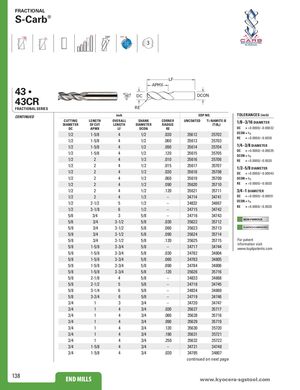

FRACTIONAL S-Carb® 38° POS ® 3 LF APMX 43 • DC DCON 43CR FRACTIONAL SERIES RE CONTINUED inch EDP NO. TOLERANCES (inch) CUTTING LENGTHDIAMETEROF CUT OVERALL SHANKLENGTHDIAMETERCORNERRADIUSUNCOATED Ti-NAMITE-B(TiB2)1/8–3/16 DIAMETER DC APMX LF DCON RE DC = +0.0000/–0.00032 1/2 1-5/8 4 1/2 .030 35612 35702 DCON = h6 RE = +0.0000/–0.0020 1/2 1-5/8 4 1/2 .060 35613 35703 1/2 1-5/8 4 1/2 .090 35614 35704 1/4–3/8 DIAMETER 1/2 1-5/8 4 1/2 .120 35615 35705 DC = +0.0000/–0.00035DCON = h6 1/2 2 4 1/2 .010 35616 35706 RE = +0.0000/–0.0020 1/2 2 4 1/2 .015 35617 35707 1/2–5/8 DIAMETER 1/2 2 4 1/2 .030 35618 35708 DC = +0.0000/–0.00043 1/2 2 4 1/2 .060 35619 35709 DCON = h6 1/2 2 4 1/2 .090 35620 35710 RE = +0.0000/–0.0020 1/2 2 4 1/2 .120 35621 35711 3/4–1 DIAMETER 1/2 2 4 1/2 – 34714 34741 DC = +0.0000/–0.00051 1/2 2-1/2 5 1/2 – 34832 34867 DCON = h6 1/2 3-1/8 6 1/2 – 34715 34742 RE = +0.0000/–0.0020 5/8 3/4 3 5/8 – 34716 34743 5/8 3/4 3-1/2 5/8 .030 35622 35712 NON-FERROUS 5/8 3/4 3-1/2 5/8 .060 35623 35713 PLASTICS/COMPOSITES 5/8 3/4 3-1/2 5/8 .090 35624 35714 5/8 3/4 3-1/2 5/8 .120 35625 35715 For patent 5/8 1-5/8 3-3/4 5/8 – 34717 34744 information visitwww.ksptpatents.com 5/8 1-5/8 3-3/4 5/8 .030 34782 34804 5/8 1-5/8 3-3/4 5/8 .060 34783 34805 5/8 1-5/8 3-3/4 5/8 .090 34784 34806 5/8 1-5/8 3-3/4 5/8 .120 35626 35716 5/8 2-1/8 4 5/8 – 34833 34868 5/8 2-1/2 5 5/8 – 34718 34745 5/8 3-1/4 6 5/8 – 34834 34869 5/8 3-3/4 6 5/8 – 34719 34746 3/4 1 3 3/4 – 34720 34747 3/4 1 4 3/4 .030 35627 35717 3/4 1 4 3/4 .060 35628 35718 3/4 1 4 3/4 .090 35629 35719 3/4 1 4 3/4 .120 35630 35720 3/4 1 4 3/4 .190 35631 35721 3/4 1 4 3/4 .250 35632 35722 3/4 1-5/8 4 3/4 – 34721 34748 3/4 1-5/8 4 3/4 .030 34785 34807 continued on next page 138 END MILLS wwwE.kNyDoMceILraLS-sgstool.com
