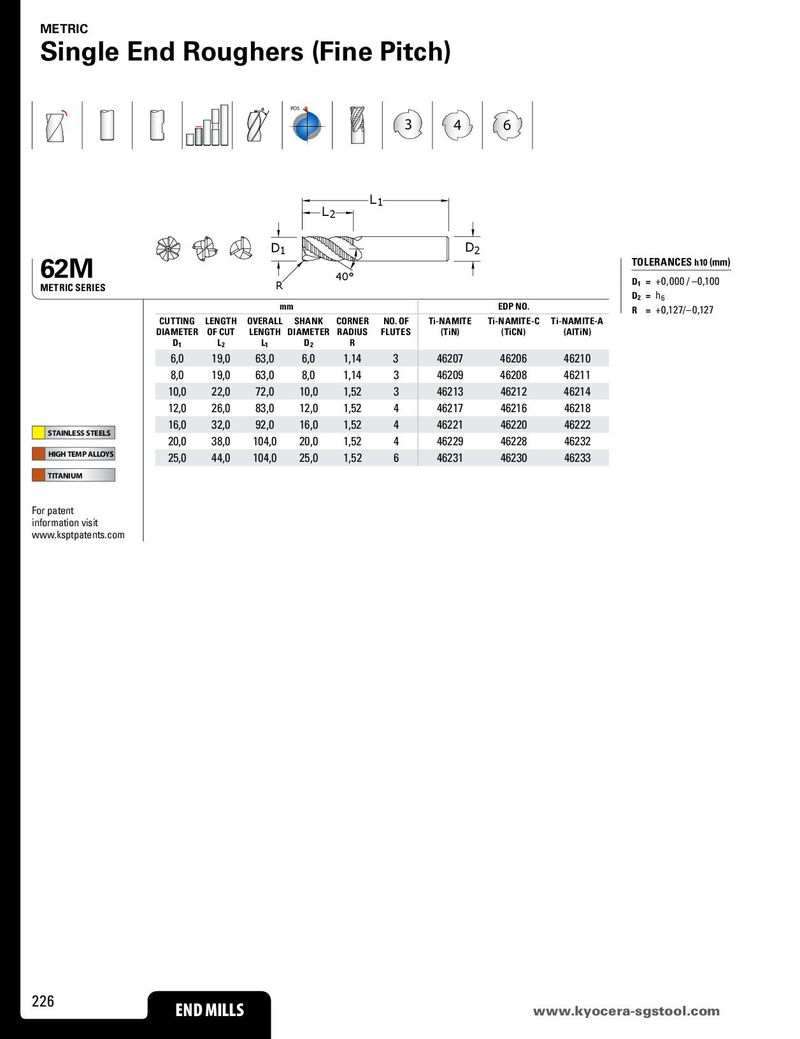

METRIC Single End Roughers (Fine Pitch) POS 3 4 6 L2 L1 D1 D2 62M TOLERANCES h10 (mm) R 40° D1 = +0,000 / –0,100 METRIC SERIES D2 = h6 mm EDP NO. R = +0,127/–0,127 CUTTING LENGTH OVERALL SHANK CORNER NO. OF Ti-NAMITE Ti-NAMITE-C Ti-NAMITE-A DIAMETER OF CUT LENGTH DIAMETER RADIUS FLUTES (TiN) (TiCN) (AlTiN) D1 L2 L1 D2 R 6,0 19,0 63,0 6,0 1,14 3 46207 46206 46210 8,0 19,0 63,0 8,0 1,14 3 46209 46208 46211 10,0 22,0 72,0 10,0 1,52 3 46213 46212 46214 12,0 26,0 83,0 12,0 1,52 4 46217 46216 46218 STAINLESS STEELS 16,0 32,0 92,0 16,0 1,52 4 46221 46220 46222 20,0 38,0 104,0 20,0 1,52 4 46229 46228 46232 HIGH TEMP ALLOYS 25,0 44,0 104,0 25,0 1,52 6 46231 46230 46233 TITANIUM For patent information visit www.ksptpatents.com 226 END MILLS wwwE.kNyDoMceILraLS-sgstool.com
