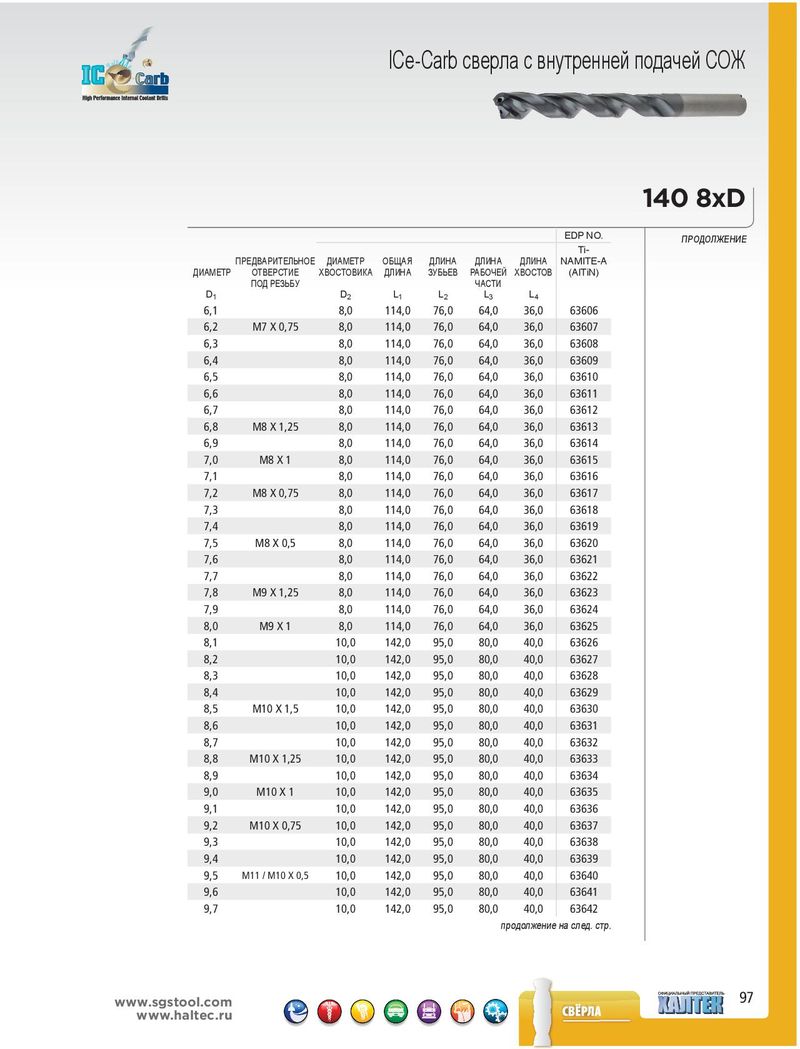

Общий каталог SGS 2015 на русском - страница 97

ICe-Carb сверла с внутренней подачей СОЖ 140 8xD EDP NO. ПРОДОЛЖЕНИЕ Ti- ПРЕДВАРИТЕЛЬНОЕ ДИАМЕТР ОБЩАЯ ДЛИНА ДЛИНА ДЛИНА NAMITE-A ДИАМЕТР ОТВЕРСТИЕ ХВОСТОВИКА ДЛИНА ЗУБЬЕВ РАБОЧЕЙ ХВОСТОВ (AlTiN) ПОД РЕЗЬБУ ЧАСТИ D1 D2 L1 L2 L3 L4 6,1 8,0 114,0 76,0 64,0 36,0 63606 6,2 M7 X 0,75 8,0 114,0 76,0 64,0 36,0 63607 6,3 8,0 114,0 76,0 64,0 36,0 63608 6,4 8,0 114,0 76,0 64,0 36,0 63609 6,5 8,0 114,0 76,0 64,0 36,0 63610 6,6 8,0 114,0 76,0 64,0 36,0 63611 6,7 8,0 114,0 76,0 64,0 36,0 63612 6,8 M8 X 1,25 8,0 114,0 76,0 64,0 36,0 63613 6,9 8,0 114,0 76,0 64,0 36,0 63614 7,0 M8 X 1 8,0 114,0 76,0 64,0 36,0 63615 7,1 8,0 114,0 76,0 64,0 36,0 63616 7,2 M8 X 0,75 8,0 114,0 76,0 64,0 36,0 63617 7,3 8,0 114,0 76,0 64,0 36,0 63618 7,4 8,0 114,0 76,0 64,0 36,0 63619 7,5 M8 X 0,5 8,0 114,0 76,0 64,0 36,0 63620 7,6 8,0 114,0 76,0 64,0 36,0 63621 7,7 8,0 114,0 76,0 64,0 36,0 63622 7,8 M9 X 1,25 8,0 114,0 76,0 64,0 36,0 63623 7,9 8,0 114,0 76,0 64,0 36,0 63624 8,0 M9 X 1 8,0 114,0 76,0 64,0 36,0 63625 8,1 10,0 142,0 95,0 80,0 40,0 63626 8,2 10,0 142,0 95,0 80,0 40,0 63627 8,3 10,0 142,0 95,0 80,0 40,0 63628 8,4 10,0 142,0 95,0 80,0 40,0 63629 8,5 M10 X 1,5 10,0 142,0 95,0 80,0 40,0 63630 8,6 10,0 142,0 95,0 80,0 40,0 63631 8,7 10,0 142,0 95,0 80,0 40,0 63632 8,8 M10 X 1,25 10,0 142,0 95,0 80,0 40,0 63633 8,9 10,0 142,0 95,0 80,0 40,0 63634 9,0 M10 X 1 10,0 142,0 95,0 80,0 40,0 63635 9,1 10,0 142,0 95,0 80,0 40,0 63636 9,2 M10 X 0,75 10,0 142,0 95,0 80,0 40,0 63637 9,3 10,0 142,0 95,0 80,0 40,0 63638 9,4 10,0 142,0 95,0 80,0 40,0 63639 9,5 M11 / M10 X 0,5 10,0 142,0 95,0 80,0 40,0 63640 9,6 10,0 142,0 95,0 80,0 40,0 63641 9,7 10,0 142,0 95,0 80,0 40,0 63642 продолжение на след. стр. www.sgstool.com 97 www.haltec.ru
