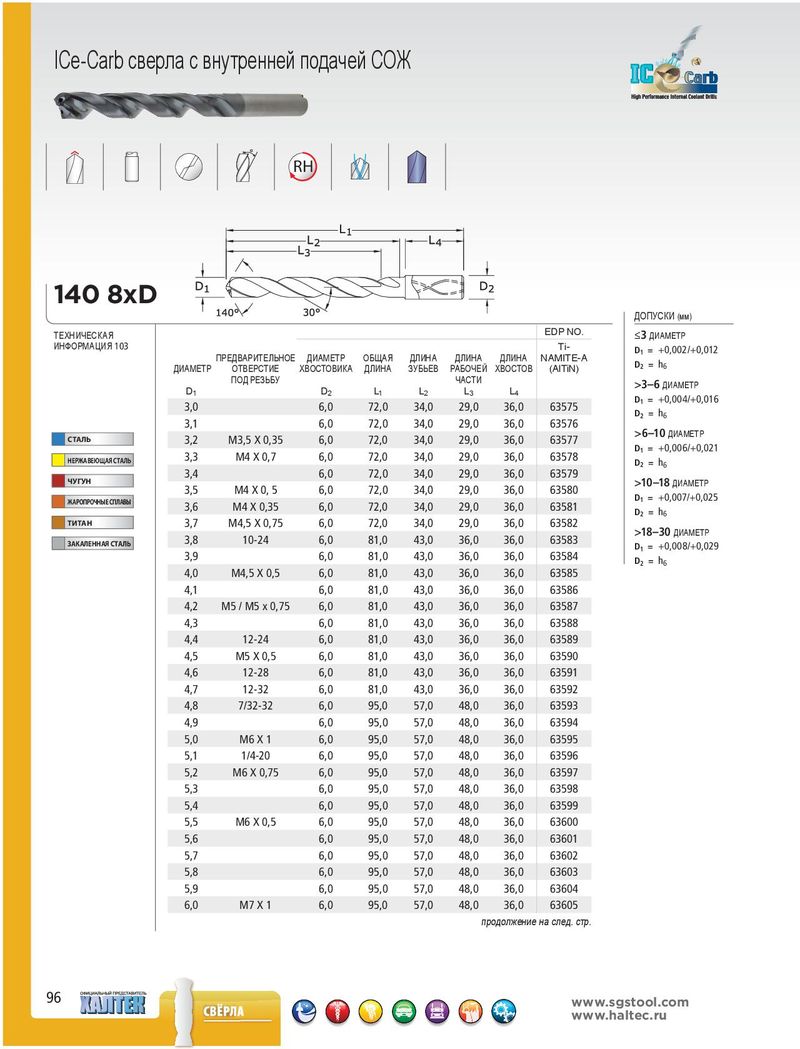

ICe-Carb сверла с внутренней подачей СОЖ RH 140 8xD ДОПУСКИ (мм) ТЕХНИЧЕСКАЯ EDP NO. ≤3 ДИАМЕТР ИНФОРМАЦИЯ 103 Ti- D1 = +0,002/+0,012 ПРЕДВАРИТЕЛЬНОЕ ДИАМЕТР ОБЩАЯ ДЛИНА ДЛИНА ДЛИНА NAMITE-A D2 = h6 ДИАМЕТР ОТВЕРСТИЕ ХВОСТОВИКА ДЛИНА ЗУБЬЕВ РАБОЧЕЙ ХВОСТОВ (AlTiN) ПОД РЕЗЬБУ ЧАСТИ >3–6 ДИАМЕТР D1 D2 L1 L2 L3 L4 D1 = +0,004/+0,016 3,0 6,0 72,0 34,0 29,0 36,0 63575 D2 = h6 3,1 6,0 72,0 34,0 29,0 36,0 63576 >6–10 ДИАМЕТР СТАЛЬ 3,2 M3,5 X 0,35 6,0 72,0 34,0 29,0 36,0 63577 3,3 M4 X 0,7 6,0 72,0 34,0 29,0 36,0 63578 D1 = +0,006/+0,021 НЕРЖАВЕЮЩАЯ СТАЛЬ D2 = h6 ЧУГУН 3,4 6,0 72,0 34,0 29,0 36,0 63579 >10–18 ДИАМЕТР 3,5 M4 X 0, 5 6,0 72,0 34,0 29,0 36,0 63580 D1 = +0,007/+0,025 ЖАРОПРОЧНЫЕ СПЛАВЫ 3,6 M4 X 0,35 6,0 72,0 34,0 29,0 36,0 63581 D2 = h6 ТИТАН 3,7 M4,5 X 0,75 6,0 72,0 34,0 29,0 36,0 63582 >18–30 ДИАМЕТР ЗАКАЛЕННАЯ СТАЛЬ 3,8 10-24 6,0 81,0 43,0 36,0 36,0 63583 D1 = +0,008/+0,029 3,9 6,0 81,0 43,0 36,0 36,0 63584 D2 = h6 4,0 M4,5 X 0,5 6,0 81,0 43,0 36,0 36,0 63585 4,1 6,0 81,0 43,0 36,0 36,0 63586 4,2 M5 / M5 x 0,75 6,0 81,0 43,0 36,0 36,0 63587 4,3 6,0 81,0 43,0 36,0 36,0 63588 4,4 12-24 6,0 81,0 43,0 36,0 36,0 63589 4,5 M5 X 0,5 6,0 81,0 43,0 36,0 36,0 63590 4,6 12-28 6,0 81,0 43,0 36,0 36,0 63591 4,7 12-32 6,0 81,0 43,0 36,0 36,0 63592 4,8 7/32-32 6,0 95,0 57,0 48,0 36,0 63593 4,9 6,0 95,0 57,0 48,0 36,0 63594 5,0 M6 X 1 6,0 95,0 57,0 48,0 36,0 63595 5,1 1/4-20 6,0 95,0 57,0 48,0 36,0 63596 5,2 M6 X 0,75 6,0 95,0 57,0 48,0 36,0 63597 5,3 6,0 95,0 57,0 48,0 36,0 63598 5,4 6,0 95,0 57,0 48,0 36,0 63599 5,5 M6 X 0,5 6,0 95,0 57,0 48,0 36,0 63600 5,6 6,0 95,0 57,0 48,0 36,0 63601 5,7 6,0 95,0 57,0 48,0 36,0 63602 5,8 6,0 95,0 57,0 48,0 36,0 63603 5,9 6,0 95,0 57,0 48,0 36,0 63604 6,0 M7 X 1 6,0 95,0 57,0 48,0 36,0 63605 продолжение на след. стр. 96 www.sgstool.com www.haltec.ru
