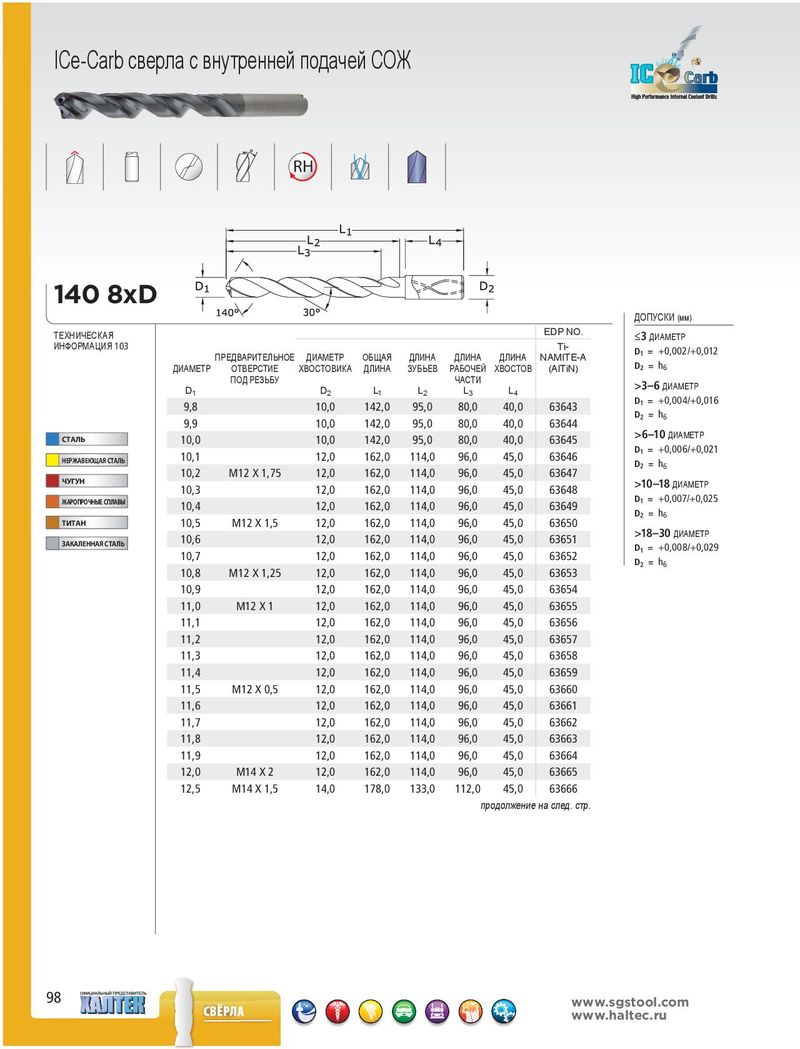

Общий каталог SGS 2015 на русском - страница 98

ICe-Carb сверла с внутренней подачей СОЖ RH 140 8xD ДОПУСКИ (мм) ТЕХНИЧЕСКАЯ EDP NO. ≤3 ДИАМЕТР ИНФОРМАЦИЯ 103 Ti- D1 = +0,002/+0,012 ПРЕДВАРИТЕЛЬНОЕ ДИАМЕТР ОБЩАЯ ДЛИНА ДЛИНА ДЛИНА NAMITE-A D2 = h6 ДИАМЕТР ОТВЕРСТИЕ ХВОСТОВИКА ДЛИНА ЗУБЬЕВ РАБОЧЕЙ ХВОСТОВ (AlTiN) ПОД РЕЗЬБУ ЧАСТИ >3–6 ДИАМЕТР D1 D2 L1 L2 L3 L4 D1 = +0,004/+0,016 9,8 10,0 142,0 95,0 80,0 40,0 63643 D2 = h6 9,9 10,0 142,0 95,0 80,0 40,0 63644 СТАЛЬ 10,0 10,0 142,0 95,0 80,0 40,0 63645 >6–10 ДИАМЕТР 10,1 12,0 162,0 114,0 96,0 45,0 63646 D1 = +0,006/+0,021 НЕРЖАВЕЮЩАЯ СТАЛЬ D2 = h6 ЧУГУН 10,2 M12 X 1,75 12,0 162,0 114,0 96,0 45,0 63647 10,3 12,0 162,0 114,0 96,0 45,0 63648 >10–18 ДИАМЕТР ЖАРОПРОЧНЫЕ СПЛАВЫ 10,4 12,0 162,0 114,0 96,0 45,0 63649 D1 = +0,007/+0,025 10,5 M12 X 1,5 12,0 162,0 114,0 96,0 45,0 63650 D2 = h6 ТИТАН 10,6 12,0 162,0 114,0 96,0 45,0 63651 >18–30 ДИАМЕТР ЗАКАЛЕННАЯ СТАЛЬ D1 = +0,008/+0,029 10,7 12,0 162,0 114,0 96,0 45,0 63652 D2 = h6 10,8 M12 X 1,25 12,0 162,0 114,0 96,0 45,0 63653 10,9 12,0 162,0 114,0 96,0 45,0 63654 11,0 M12 X 1 12,0 162,0 114,0 96,0 45,0 63655 11,1 12,0 162,0 114,0 96,0 45,0 63656 11,2 12,0 162,0 114,0 96,0 45,0 63657 11,3 12,0 162,0 114,0 96,0 45,0 63658 11,4 12,0 162,0 114,0 96,0 45,0 63659 11,5 M12 X 0,5 12,0 162,0 114,0 96,0 45,0 63660 11,6 12,0 162,0 114,0 96,0 45,0 63661 11,7 12,0 162,0 114,0 96,0 45,0 63662 11,8 12,0 162,0 114,0 96,0 45,0 63663 11,9 12,0 162,0 114,0 96,0 45,0 63664 12,0 M14 X 2 12,0 162,0 114,0 96,0 45,0 63665 12,5 M14 X 1,5 14,0 178,0 133,0 112,0 45,0 63666 продолжение на след. стр. 98 www.sgstool.com www.haltec.ru
