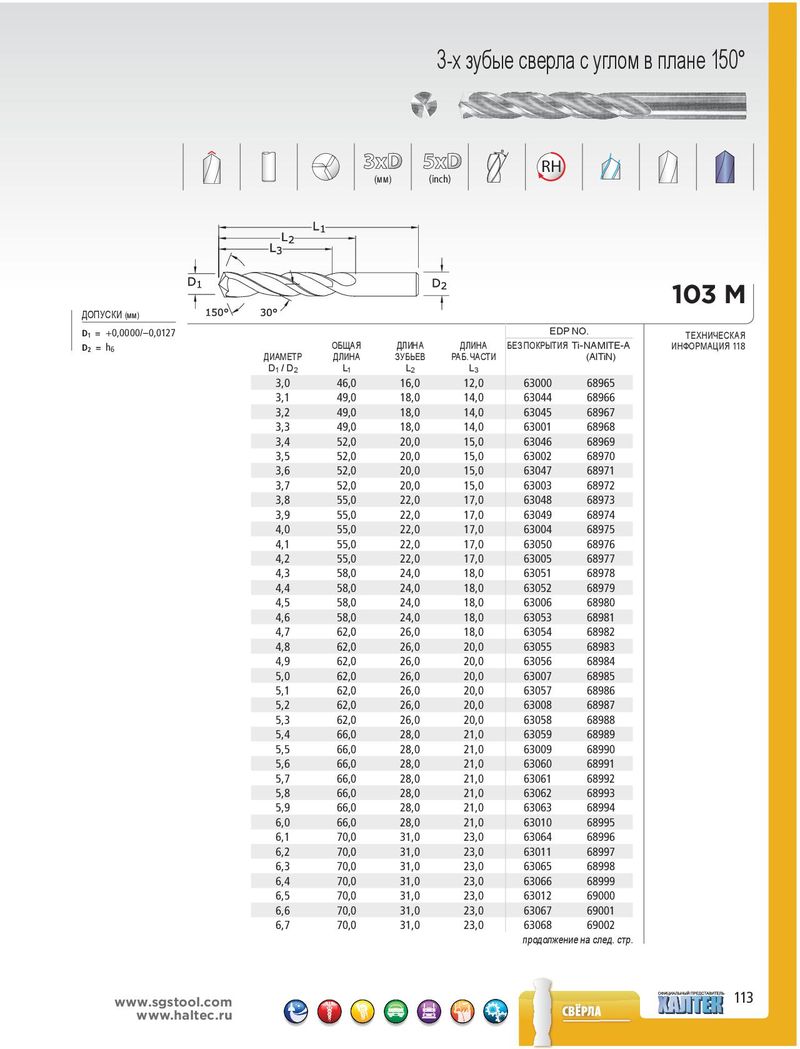

3-х зубые сверла с углом в плане 150° RH (мм) (inch) 103 M ДОПУСКИ (мм) D1 = +0,0000/–0,0127 EDP NO. ТЕХНИЧЕСКАЯ D2 = h6 ОБЩАЯ ДЛИНА ДЛИНА БЕЗ ПОКРЫТИЯ Ti-NAMITE-A ИНФОРМАЦИЯ 118 ДИАМЕТР ДЛИНА ЗУБЬЕВ РАБ. ЧАСТИ (AlTiN) D1 / D2 L1 L2 L3 3,0 46,0 16,0 12,0 63000 68965 3,1 49,0 18,0 14,0 63044 68966 3,2 49,0 18,0 14,0 63045 68967 3,3 49,0 18,0 14,0 63001 68968 3,4 52,0 20,0 15,0 63046 68969 3,5 52,0 20,0 15,0 63002 68970 3,6 52,0 20,0 15,0 63047 68971 3,7 52,0 20,0 15,0 63003 68972 3,8 55,0 22,0 17,0 63048 68973 3,9 55,0 22,0 17,0 63049 68974 4,0 55,0 22,0 17,0 63004 68975 4,1 55,0 22,0 17,0 63050 68976 4,2 55,0 22,0 17,0 63005 68977 4,3 58,0 24,0 18,0 63051 68978 4,4 58,0 24,0 18,0 63052 68979 4,5 58,0 24,0 18,0 63006 68980 4,6 58,0 24,0 18,0 63053 68981 4,7 62,0 26,0 18,0 63054 68982 4,8 62,0 26,0 20,0 63055 68983 4,9 62,0 26,0 20,0 63056 68984 5,0 62,0 26,0 20,0 63007 68985 5,1 62,0 26,0 20,0 63057 68986 5,2 62,0 26,0 20,0 63008 68987 5,3 62,0 26,0 20,0 63058 68988 5,4 66,0 28,0 21,0 63059 68989 5,5 66,0 28,0 21,0 63009 68990 5,6 66,0 28,0 21,0 63060 68991 5,7 66,0 28,0 21,0 63061 68992 5,8 66,0 28,0 21,0 63062 68993 5,9 66,0 28,0 21,0 63063 68994 6,0 66,0 28,0 21,0 63010 68995 6,1 70,0 31,0 23,0 63064 68996 6,2 70,0 31,0 23,0 63011 68997 6,3 70,0 31,0 23,0 63065 68998 6,4 70,0 31,0 23,0 63066 68999 6,5 70,0 31,0 23,0 63012 69000 6,6 70,0 31,0 23,0 63067 69001 6,7 70,0 31,0 23,0 63068 69002 продолжение на след. стр. www.sgstool.com 113 www.haltec.ru
