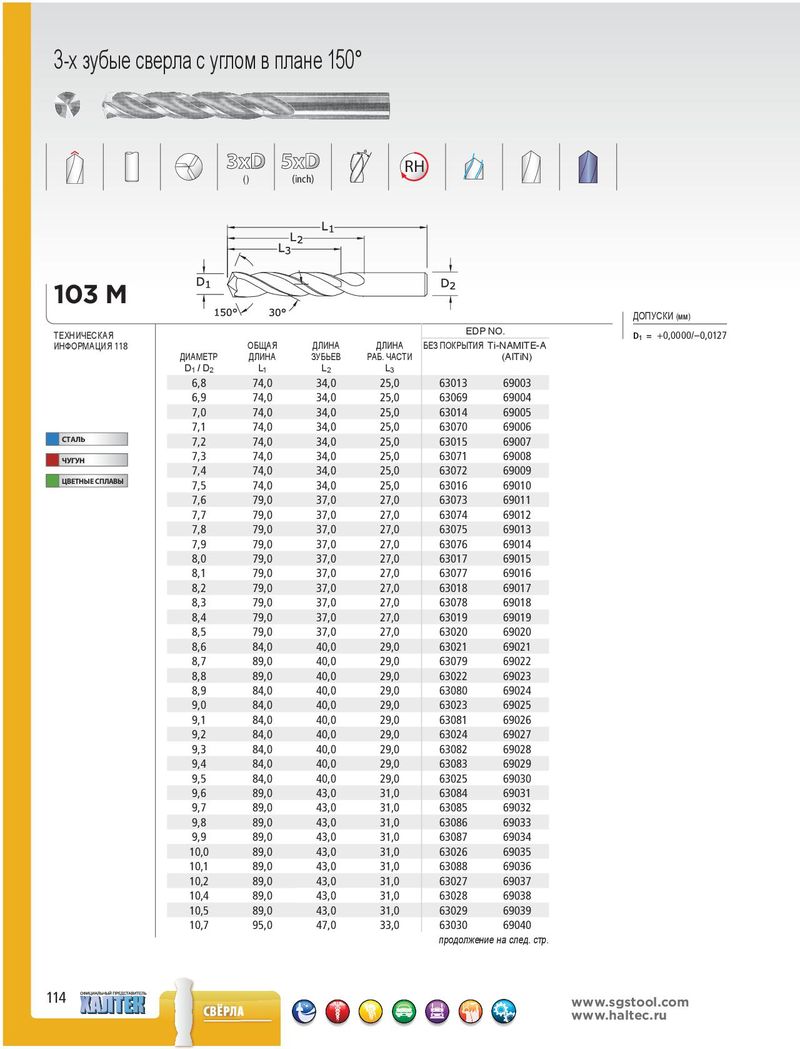

Общий каталог SGS 2015 на русском - страница 114

3-х зубые сверла с углом в плане 150° RH () (inch) 103 M ДОПУСКИ (мм) ТЕХНИЧЕСКАЯ EDP NO. D1 = +0,0000/–0,0127 ИНФОРМАЦИЯ 118 ОБЩАЯ ДЛИНА ДЛИНА БЕЗ ПОКРЫТИЯ Ti-NAMITE-A ДИАМЕТР ДЛИНА ЗУБЬЕВ РАБ. ЧАСТИ (AlTiN) D1 / D2 L1 L2 L3 6,8 74,0 34,0 25,0 63013 69003 6,9 74,0 34,0 25,0 63069 69004 7,0 74,0 34,0 25,0 63014 69005 7,1 74,0 34,0 25,0 63070 69006 СТАЛЬ 7,2 74,0 34,0 25,0 63015 69007 ЧУГУН 7,3 74,0 34,0 25,0 63071 69008 7,4 74,0 34,0 25,0 63072 69009 ЦВЕТНЫЕ СПЛАВЫ 7,5 74,0 34,0 25,0 63016 69010 7,6 79,0 37,0 27,0 63073 69011 7,7 79,0 37,0 27,0 63074 69012 7,8 79,0 37,0 27,0 63075 69013 7,9 79,0 37,0 27,0 63076 69014 8,0 79,0 37,0 27,0 63017 69015 8,1 79,0 37,0 27,0 63077 69016 8,2 79,0 37,0 27,0 63018 69017 8,3 79,0 37,0 27,0 63078 69018 8,4 79,0 37,0 27,0 63019 69019 8,5 79,0 37,0 27,0 63020 69020 8,6 84,0 40,0 29,0 63021 69021 8,7 89,0 40,0 29,0 63079 69022 8,8 89,0 40,0 29,0 63022 69023 8,9 84,0 40,0 29,0 63080 69024 9,0 84,0 40,0 29,0 63023 69025 9,1 84,0 40,0 29,0 63081 69026 9,2 84,0 40,0 29,0 63024 69027 9,3 84,0 40,0 29,0 63082 69028 9,4 84,0 40,0 29,0 63083 69029 9,5 84,0 40,0 29,0 63025 69030 9,6 89,0 43,0 31,0 63084 69031 9,7 89,0 43,0 31,0 63085 69032 9,8 89,0 43,0 31,0 63086 69033 9,9 89,0 43,0 31,0 63087 69034 10,0 89,0 43,0 31,0 63026 69035 10,1 89,0 43,0 31,0 63088 69036 10,2 89,0 43,0 31,0 63027 69037 10,4 89,0 43,0 31,0 63028 69038 10,5 89,0 43,0 31,0 63029 69039 10,7 95,0 47,0 33,0 63030 69040 продолжение на след. стр. 114 www.sgstool.com www.haltec.ru
