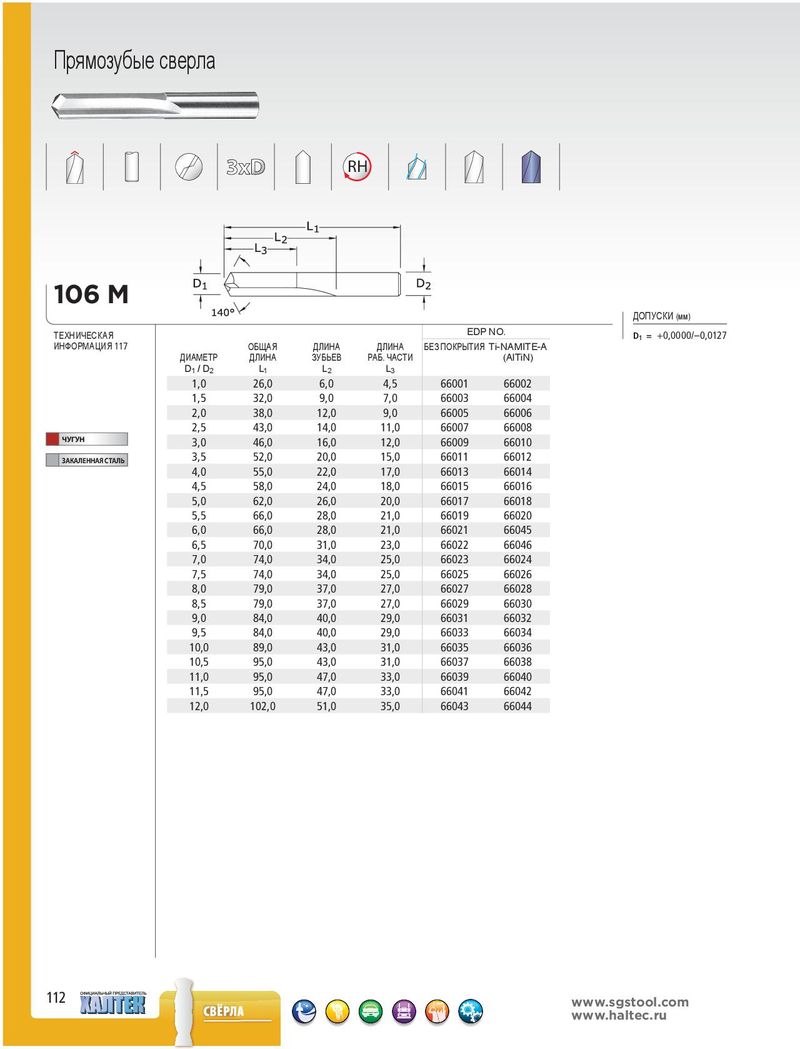

Прямозубые сверла RH 106 M ДОПУСКИ (мм) ТЕХНИЧЕСКАЯ EDP NO. D1 = +0,0000/–0,0127 ИНФОРМАЦИЯ 117 ОБЩАЯ ДЛИНА ДЛИНА БЕЗ ПОКРЫТИЯ Ti-NAMITE-A ДИАМЕТР ДЛИНА ЗУБЬЕВ РАБ. ЧАСТИ (AlTiN) D1 / D2 L1 L2 L3 1,0 26,0 6,0 4,5 66001 66002 1,5 32,0 9,0 7,0 66003 66004 2,0 38,0 12,0 9,0 66005 66006 2,5 43,0 14,0 11,0 66007 66008 ЧУГУН 3,0 46,0 16,0 12,0 66009 66010 ЗАКАЛЕННАЯ СТАЛЬ 3,5 52,0 20,0 15,0 66011 66012 4,0 55,0 22,0 17,0 66013 66014 4,5 58,0 24,0 18,0 66015 66016 5,0 62,0 26,0 20,0 66017 66018 5,5 66,0 28,0 21,0 66019 66020 6,0 66,0 28,0 21,0 66021 66045 6,5 70,0 31,0 23,0 66022 66046 7,0 74,0 34,0 25,0 66023 66024 7,5 74,0 34,0 25,0 66025 66026 8,0 79,0 37,0 27,0 66027 66028 8,5 79,0 37,0 27,0 66029 66030 9,0 84,0 40,0 29,0 66031 66032 9,5 84,0 40,0 29,0 66033 66034 10,0 89,0 43,0 31,0 66035 66036 10,5 95,0 43,0 31,0 66037 66038 11,0 95,0 47,0 33,0 66039 66040 11,5 95,0 47,0 33,0 66041 66042 12,0 102,0 51,0 35,0 66043 66044 112 www.sgstool.com www.haltec.ru
