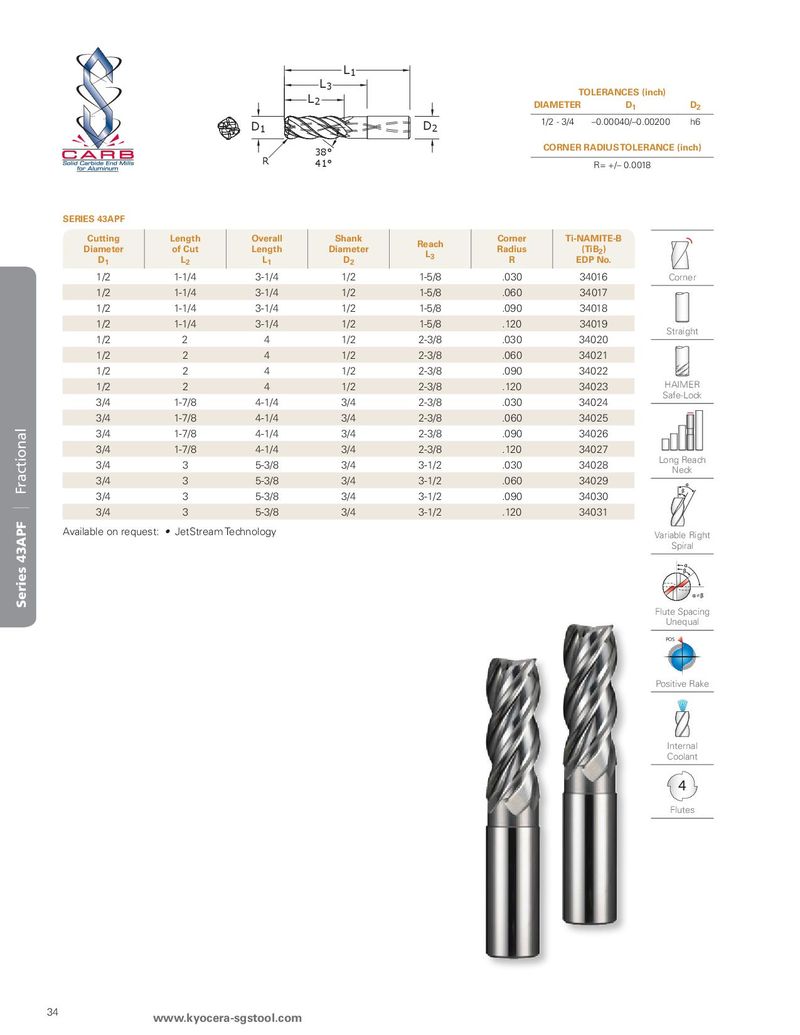

L1 L3 TOLERANCES (inch) L2 DIAMETER D1 D2 D1 D2 1/2 - 3/4 –0.00040/–0.00200 h6 38° CORNER RADIUS TOLERANCE (inch) R 41° R= +/– 0.0018 SERIES 43APF Cutting Length Overall Shank Reach Corner Ti-NAMITE-B Diameter of Cut Length Diameter L3 Radius (TiB2) D1 L2 L1 D2 R EDP No. 1/2 1-1/4 3-1/4 1/2 1-5/8 .030 34016 Corner 1/2 1-1/4 3-1/4 1/2 1-5/8 .060 34017 1/2 1-1/4 3-1/4 1/2 1-5/8 .090 34018 1/2 1-1/4 3-1/4 1/2 1-5/8 .120 34019 Straight 1/2 2 4 1/2 2-3/8 .030 34020 1/2 2 4 1/2 2-3/8 .060 34021 1/2 2 4 1/2 2-3/8 .090 34022 1/2 2 4 1/2 2-3/8 .120 34023 HAIMER 3/4 1-7/8 4-1/4 3/4 2-3/8 .030 34024 Safe-Lock 3/4 1-7/8 4-1/4 3/4 2-3/8 .060 34025 Fractional 3/4 1-7/8 4-1/4 3/4 2-3/8 .090 34026 3/4 1-7/8 4-1/4 3/4 2-3/8 .120 34027 3/4 3 5-3/8 3/4 3-1/2 .030 34028 Long Reach Neck 3/4 3 5-3/8 3/4 3-1/2 .060 34029 3/4 3 5-3/8 3/4 3-1/2 .090 34030 |  3/4 3 5-3/8 3/4 3-1/2 .120 34031 Series 43APF  Available on request:  •  JetStream Technology Variable Right Spiral ≠ Flute Spacing Unequal POS Positive Rake Internal Coolant 4 Flutes 34 www.kyocera-sgstool.com
