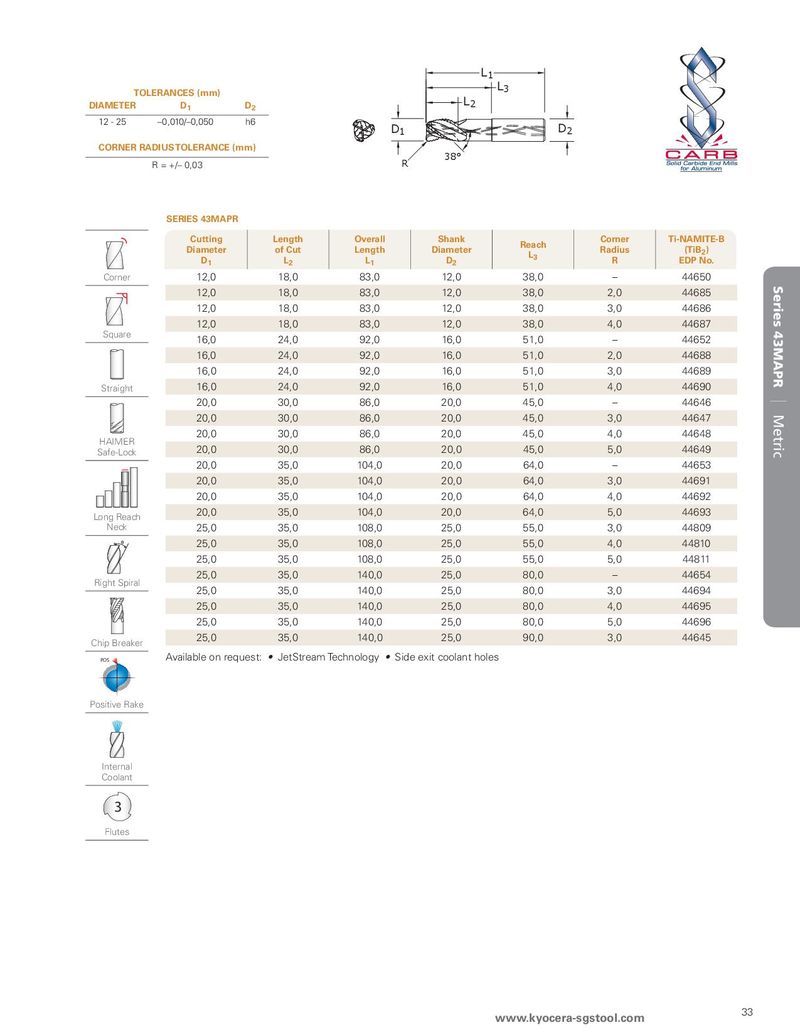

L1 TOLERANCES (mm) L3 DIAMETER D1 D2 L2 12 - 25 –0,010/–0,050 h6 D1 D2 CORNER RADIUS TOLERANCE (mm) R = +/– 0,03 R 38° SERIES 43MAPR Cutting Length Overall Shank Reach Corner Ti-NAMITE-B Diameter of Cut Length Diameter L3 Radius (TiB2) D1 L2 L1 D2 R EDP No. Corner 12,0 18,0 83,0 12,0 38,0 – 44650 12,0 18,0 83,0 12,0 38,0 2,0 44685 Series 43MAPR  12,0 18,0 83,0 12,0 38,0 3,0 44686 12,0 18,0 83,0 12,0 38,0 4,0 44687 Square 16,0 24,0 92,0 16,0 51,0 – 44652 16,0 24,0 92,0 16,0 51,0 2,0 44688 16,0 24,0 92,0 16,0 51,0 3,0 44689 Straight 16,0 24,0 92,0 16,0 51,0 4,0 44690 20,0 30,0 86,0 20,0 45,0 – 44646 |  20,0 30,0 86,0 20,0 45,0 3,0 44647 Metric HAIMER 20,0 30,0 86,0 20,0 45,0 4,0 44648 Safe-Lock 20,0 30,0 86,0 20,0 45,0 5,0 44649 20,0 35,0 104,0 20,0 64,0 – 44653 20,0 35,0 104,0 20,0 64,0 3,0 44691 20,0 35,0 104,0 20,0 64,0 4,0 44692 Long Reach 20,0 35,0 104,0 20,0 64,0 5,0 44693 Neck 25,0 35,0 108,0 25,0 55,0 3,0 44809 25,0 35,0 108,0 25,0 55,0 4,0 44810 25,0 35,0 108,0 25,0 55,0 5,0 44811 Right Spiral 25,0 35,0 140,0 25,0 80,0 – 44654 25,0 35,0 140,0 25,0 80,0 3,0 44694 25,0 35,0 140,0 25,0 80,0 4,0 44695 25,0 35,0 140,0 25,0 80,0 5,0 44696 Chip Breaker 25,0 35,0 140,0 25,0 90,0 3,0 44645 POS Available on request:  •  JetStream Technology  •  Side exit coolant holes Positive Rake Internal Coolant 3 Flutes www.kyocera-sgstool.com 33
