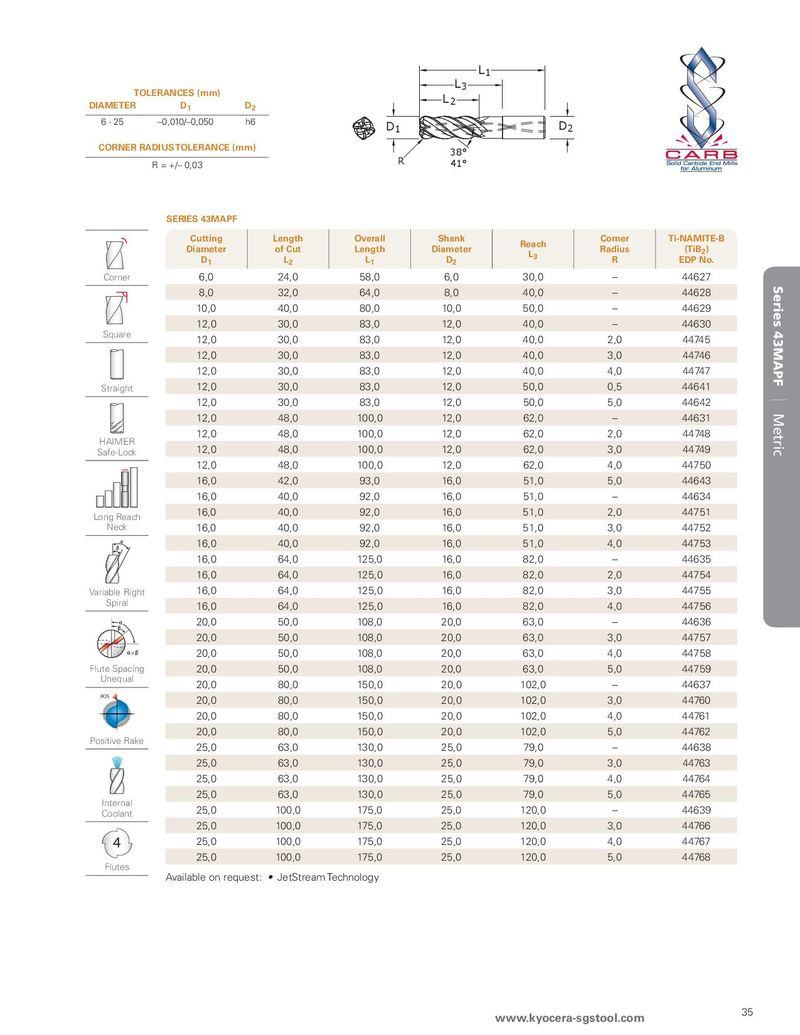

Каталог SGS инструмент для обработки алюминия - страница 35

L1 TOLERANCES (mm) L3 DIAMETER D1 D2 L2 6 - 25 –0,010/–0,050 h6 D1 D2 CORNER RADIUS TOLERANCE (mm) 38° R = +/– 0,03 R 41° SERIES 43MAPF Cutting Length Overall Shank Reach Corner Ti-NAMITE-B Diameter of Cut Length Diameter L3 Radius (TiB2) D1 L2 L1 D2 R EDP No. Corner 6,0 24,0 58,0 6,0 30,0 – 44627 8,0 32,0 64,0 8,0 40,0 – 44628 Series 43MAPF  10,0 40,0 80,0 10,0 50,0 – 44629 12,0 30,0 83,0 12,0 40,0 – 44630 Square 12,0 30,0 83,0 12,0 40,0 2,0 44745 12,0 30,0 83,0 12,0 40,0 3,0 44746 12,0 30,0 83,0 12,0 40,0 4,0 44747 Straight 12,0 30,0 83,0 12,0 50,0 0,5 44641 12,0 30,0 83,0 12,0 50,0 5,0 44642 |  12,0 48,0 100,0 12,0 62,0 – 44631 Metric HAIMER 12,0 48,0 100,0 12,0 62,0 2,0 44748 Safe-Lock 12,0 48,0 100,0 12,0 62,0 3,0 44749 12,0 48,0 100,0 12,0 62,0 4,0 44750 16,0 42,0 93,0 16,0 51,0 5,0 44643 16,0 40,0 92,0 16,0 51,0 – 44634 Long Reach 16,0 40,0 92,0 16,0 51,0 2,0 44751 Neck 16,0 40,0 92,0 16,0 51,0 3,0 44752 16,0 40,0 92,0 16,0 51,0 4,0 44753 16,0 64,0 125,0 16,0 82,0 – 44635 16,0 64,0 125,0 16,0 82,0 2,0 44754 Variable Right 16,0 64,0 125,0 16,0 82,0 3,0 44755 Spiral 16,0 64,0 125,0 16,0 82,0 4,0 44756 20,0 50,0 108,0 20,0 63,0 – 44636 20,0 50,0 108,0 20,0 63,0 3,0 44757 ≠ 20,0 50,0 108,0 20,0 63,0 4,0 44758 Flute Spacing 20,0 50,0 108,0 20,0 63,0 5,0 44759 Unequal 20,0 80,0 150,0 20,0 102,0 – 44637 POS 20,0 80,0 150,0 20,0 102,0 3,0 44760 20,0 80,0 150,0 20,0 102,0 4,0 44761 20,0 80,0 150,0 20,0 102,0 5,0 44762 Positive Rake 25,0 63,0 130,0 25,0 79,0 – 44638 25,0 63,0 130,0 25,0 79,0 3,0 44763 25,0 63,0 130,0 25,0 79,0 4,0 44764 Internal 25,0 63,0 130,0 25,0 79,0 5,0 44765 Coolant 25,0 100,0 175,0 25,0 120,0 – 44639 25,0 100,0 175,0 25,0 120,0 3,0 44766 4 25,0 100,0 175,0 25,0 120,0 4,0 44767 25,0 100,0 175,0 25,0 120,0 5,0 44768 Flutes Available on request:  •  JetStream Technology www.kyocera-sgstool.com 35
