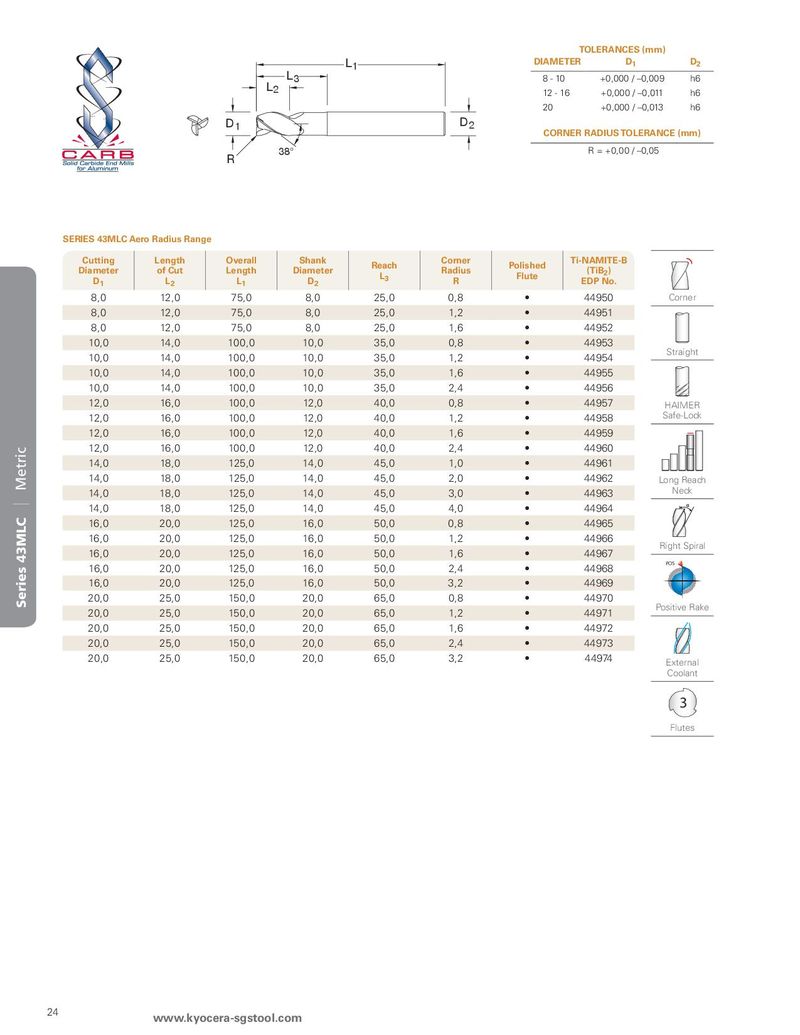

TOLERANCES (mm) L1 DIAMETER D1 D2 L2 L3 8 - 10 +0,000 / –0,009 h6 12 - 16 +0,000 / –0,011 h6 20 +0,000 / –0,013 h6 D1 D2 CORNER RADIUS TOLERANCE (mm) R 38° R = +0,00 / –0,05 SERIES 43MLC Aero Radius Range Cutting Length Overall Shank Reach Corner Polished Ti-NAMITE-B Diameter of Cut Length Diameter L3 Radius Flute (TiB2) D1 L2 L1 D2 R EDP No. 8,0 12,0 75,0 8,0 25,0 0,8 • 44950 Corner 8,0 12,0 75,0 8,0 25,0 1,2 • 44951 8,0 12,0 75,0 8,0 25,0 1,6 • 44952 10,0 14,0 100,0 10,0 35,0 0,8 • 44953 Straight 10,0 14,0 100,0 10,0 35,0 1,2 • 44954 10,0 14,0 100,0 10,0 35,0 1,6 • 44955 10,0 14,0 100,0 10,0 35,0 2,4 • 44956 12,0 16,0 100,0 12,0 40,0 0,8 • 44957 HAIMER 12,0 16,0 100,0 12,0 40,0 1,2 • 44958 Safe-Lock 12,0 16,0 100,0 12,0 40,0 1,6 • 44959 Metric 12,0 16,0 100,0 12,0 40,0 2,4 • 44960 14,0 18,0 125,0 14,0 45,0 1,0 • 44961 14,0 18,0 125,0 14,0 45,0 2,0 • 44962 Long Reach 14,0 18,0 125,0 14,0 45,0 3,0 • 44963 Neck |  14,0 18,0 125,0 14,0 45,0 4,0 • 44964 Series 43MLC  16,0 20,0 125,0 16,0 50,0 0,8 • 44965 16,0 20,0 125,0 16,0 50,0 1,2 • 44966 Right Spiral 16,0 20,0 125,0 16,0 50,0 1,6 • 44967 16,0 20,0 125,0 16,0 50,0 2,4 • 44968 POS 16,0 20,0 125,0 16,0 50,0 3,2 • 44969 20,0 25,0 150,0 20,0 65,0 0,8 • 44970 20,0 25,0 150,0 20,0 65,0 1,2 • 44971 Positive Rake 20,0 25,0 150,0 20,0 65,0 1,6 • 44972 20,0 25,0 150,0 20,0 65,0 2,4 • 44973 20,0 25,0 150,0 20,0 65,0 3,2 • 44974 External Coolant 3 Flutes 24 www.kyocera-sgstool.com
