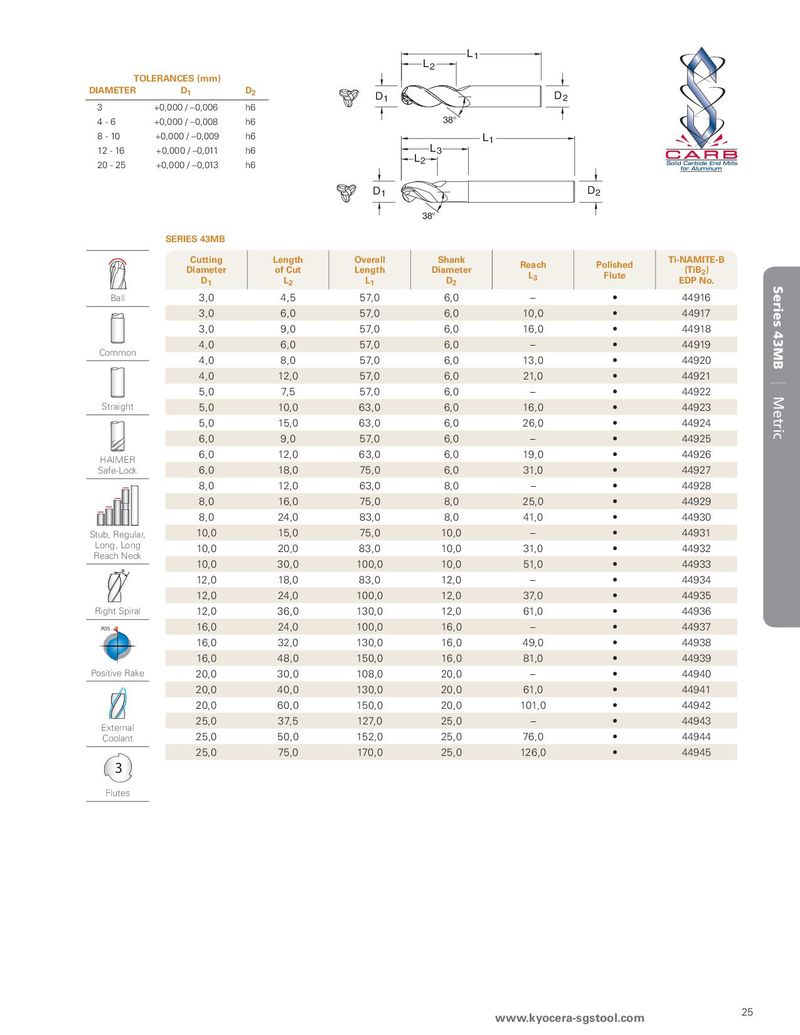

L2 L1 TOLERANCES (mm) DIAMETER D1 D2 D1 D2 3 +0,000 / –0,006 h6 4-6 +0,000 / –0,008 h6 38° 8 - 10 +0,000 / –0,009 h6 L1 12 - 16 +0,000 / –0,011 h6 L2 L3 20 - 25 +0,000 / –0,013 h6 D1 D2 38° SERIES 43MB Cutting Length Overall Shank Reach Polished Ti-NAMITE-B Diameter of Cut Length Diameter L3 Flute (TiB2) D1 L2 L1 D2 EDP No. Ball 3,0 4,5 57,0 6,0 – • 44916 Series 43MB  3,0 6,0 57,0 6,0 10,0 • 44917 3,0 9,0 57,0 6,0 16,0 • 44918 Common 4,0 6,0 57,0 6,0 – • 44919 4,0 8,0 57,0 6,0 13,0 • 44920 4,0 12,0 57,0 6,0 21,0 • 44921 |  5,0 7,5 57,0 6,0 – • 44922 Metric Straight 5,0 10,0 63,0 6,0 16,0 • 44923 5,0 15,0 63,0 6,0 26,0 • 44924 6,0 9,0 57,0 6,0 – • 44925 HAIMER 6,0 12,0 63,0 6,0 19,0 • 44926 Safe-Lock 6,0 18,0 75,0 6,0 31,0 • 44927 8,0 12,0 63,0 8,0 – • 44928 8,0 16,0 75,0 8,0 25,0 • 44929 8,0 24,0 83,0 8,0 41,0 • 44930 Stub, Regular, 10,0 15,0 75,0 10,0 – • 44931 Long, Long 10,0 20,0 83,0 10,0 31,0 • 44932 Reach Neck 10,0 30,0 100,0 10,0 51,0 • 44933 12,0 18,0 83,0 12,0 – • 44934 12,0 24,0 100,0 12,0 37,0 • 44935 Right Spiral 12,0 36,0 130,0 12,0 61,0 • 44936 POS 16,0 24,0 100,0 16,0 – • 44937 16,0 32,0 130,0 16,0 49,0 • 44938 16,0 48,0 150,0 16,0 81,0 • 44939 Positive Rake 20,0 30,0 108,0 20,0 – • 44940 20,0 40,0 130,0 20,0 61,0 • 44941 20,0 60,0 150,0 20,0 101,0 • 44942 External 25,0 37,5 127,0 25,0 – • 44943 Coolant 25,0 50,0 152,0 25,0 76,0 • 44944 25,0 75,0 170,0 25,0 126,0 • 44945 3 Flutes www.kyocera-sgstool.com 25
