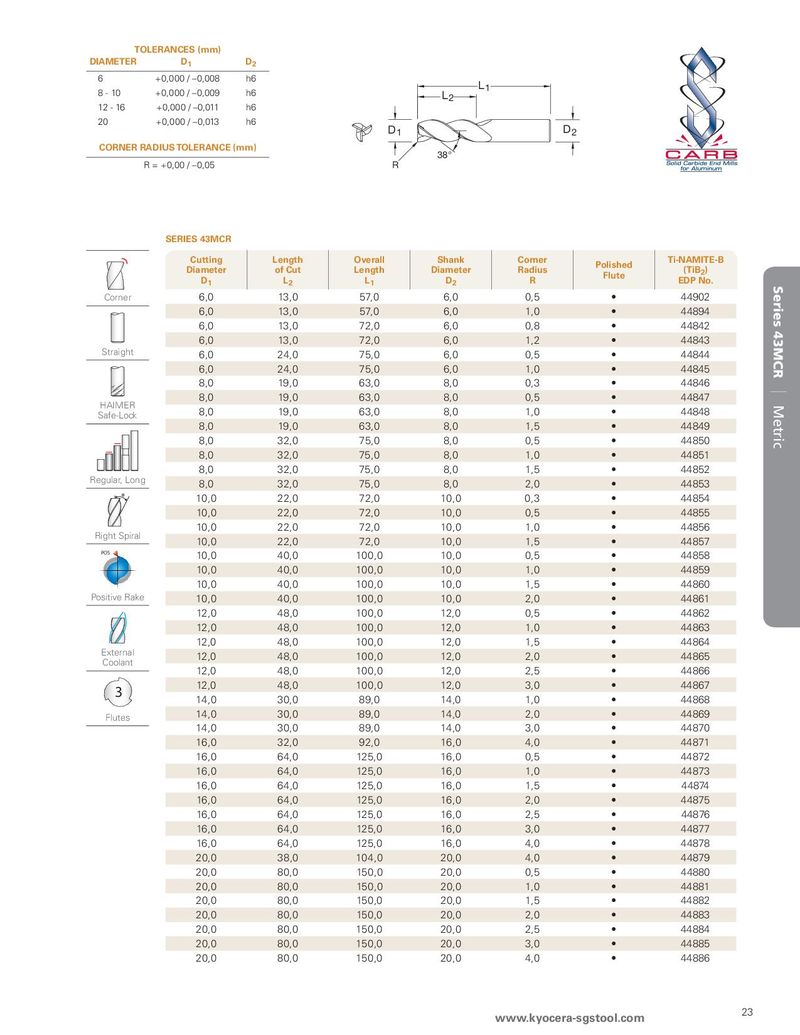

TOLERANCES (mm) DIAMETER D1 D2 6 +0,000 / –0,008 h6 L1 8 - 10 +0,000 / –0,009 h6 L2 12 - 16 +0,000 / –0,011 h6 20 +0,000 / –0,013 h6 D1 D2 CORNER RADIUS TOLERANCE (mm) 38° R = +0,00 / –0,05 R SERIES 43MCR Cutting Length Overall Shank Corner Polished Ti-NAMITE-B Diameter of Cut Length Diameter Radius Flute (TiB2) D1 L2 L1 D2 R EDP No. Corner 6,0 13,0 57,0 6,0 0,5 • 44902 Series 43MCR  6,0 13,0 57,0 6,0 1,0 • 44894 6,0 13,0 72,0 6,0 0,8 • 44842 6,0 13,0 72,0 6,0 1,2 • 44843 Straight 6,0 24,0 75,0 6,0 0,5 • 44844 6,0 24,0 75,0 6,0 1,0 • 44845 8,0 19,0 63,0 8,0 0,3 • 44846 8,0 19,0 63,0 8,0 0,5 • 44847 |  HAIMER 8,0 19,0 63,0 8,0 1,0 • 44848 Metric Safe-Lock 8,0 19,0 63,0 8,0 1,5 • 44849 8,0 32,0 75,0 8,0 0,5 • 44850 8,0 32,0 75,0 8,0 1,0 • 44851 8,0 32,0 75,0 8,0 1,5 • 44852 Regular, Long 8,0 32,0 75,0 8,0 2,0 • 44853 10,0 22,0 72,0 10,0 0,3 • 44854 10,0 22,0 72,0 10,0 0,5 • 44855 Right Spiral 10,0 22,0 72,0 10,0 1,0 • 44856 10,0 22,0 72,0 10,0 1,5 • 44857 POS 10,0 40,0 100,0 10,0 0,5 • 44858 10,0 40,0 100,0 10,0 1,0 • 44859 10,0 40,0 100,0 10,0 1,5 • 44860 Positive Rake 10,0 40,0 100,0 10,0 2,0 • 44861 12,0 48,0 100,0 12,0 0,5 • 44862 12,0 48,0 100,0 12,0 1,0 • 44863 12,0 48,0 100,0 12,0 1,5 • 44864 External 12,0 48,0 100,0 12,0 2,0 • 44865 Coolant 12,0 48,0 100,0 12,0 2,5 • 44866 3 12,0 48,0 100,0 12,0 3,0 • 44867 14,0 30,0 89,0 14,0 1,0 • 44868 Flutes 14,0 30,0 89,0 14,0 2,0 • 44869 14,0 30,0 89,0 14,0 3,0 • 44870 16,0 32,0 92,0 16,0 4,0 • 44871 16,0 64,0 125,0 16,0 0,5 • 44872 16,0 64,0 125,0 16,0 1,0 • 44873 16,0 64,0 125,0 16,0 1,5 • 44874 16,0 64,0 125,0 16,0 2,0 • 44875 16,0 64,0 125,0 16,0 2,5 • 44876 16,0 64,0 125,0 16,0 3,0 • 44877 16,0 64,0 125,0 16,0 4,0 • 44878 20,0 38,0 104,0 20,0 4,0 • 44879 20,0 80,0 150,0 20,0 0,5 • 44880 20,0 80,0 150,0 20,0 1,0 • 44881 20,0 80,0 150,0 20,0 1,5 • 44882 20,0 80,0 150,0 20,0 2,0 • 44883 20,0 80,0 150,0 20,0 2,5 • 44884 20,0 80,0 150,0 20,0 3,0 • 44885 20,0 80,0 150,0 20,0 4,0 • 44886 www.kyocera-sgstool.com 23
