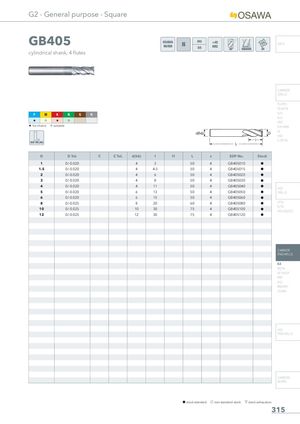

G2 - General purpose - Square GB405 OSAWA <45NORMHRC INFO cylindrical shank, 4 flutes CARBIDE DRILLS PU-HPU TA-4HTA P M K N S H SUH ALH H I H I HRC H 1st choice I suitable SUH MINI HL HSD SIDE MILLING C-SD-TA D D Tol. C C Tol. d(h6) l l1 L z EDP No. Stock 1 0/-0.020 4 3 50 4 GB405010 h 1.5 0/-0.020 4 4.5 50 4 GB405015 h 2 0/-0.020 4 6 50 4 GB405020 h 3 0/-0.020 4 8 50 4 GB405030 h 4 0/-0.020 4 11 50 4 GB405040 h HSS 5 0/-0.020 6 13 50 4 GB405050 h DRILLS 6 0/-0.020 6 15 50 4 GB405060 h 8 0/-0.025 8 20 60 4 GB405080 h LFTA 10 0/-0.025 10 30 75 4 GB405100 h SUTAHSS-HSS/CO 12 0/-0.025 12 30 75 4 GB405120 h CARBIDE END-MILLS G2 MDTA HF VH/UP MEF ALU MEX/MH UH/MH HSS END-MILLS CARBIDE BURRS h stock standard f non-standard stock m stock exhaustion 315
