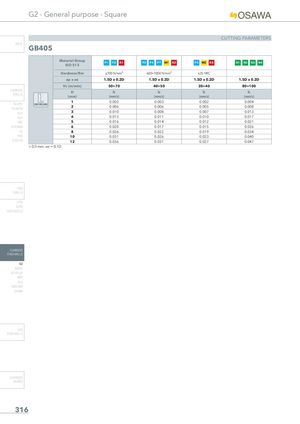

G2 - General purpose - Square CUTTING PARAMETERS INFO GB405 Material GroupISO 513 P1 P2 K1 P3 P4 P7 M1 K2 P5 M2 K3 N1 N2 N3 N4 Hardness/Rm ≤700 N/mm² 600÷1000 N/mm² ≤35 HRC ap x ae 1.5D x 0.2D 1.5D x 0.2D 1.5D x 0.2D 1.5D x 0.2D Vc (m/min) 50÷70 40÷50 20÷40 80÷100 CARBIDEDRILLS D fz fz fz fz(mm)(mm/z)(mm/z)(mm/z)(mm/z) 1 0.003 0.003 0.002 0.004 PU-HPU SIDE MILLINGTA-4HTA 2 0.006 0.006 0.005 0.008 SUH 3 0.010 0.008 0.007 0.013 ALH 4 0.013 0.011 0.010 0.017 HRC 5 0.016 0.014 0.012 0.021 SUH MINI 6 0.020 0.017 0.015 0.026 HL 8 0.026 0.022 0.019 0.034 HSD 10 0.031 0.026 0.023 0.040 C-SD-TA 12 0.036 0.031 0.027 0.047 < D3 mm: ae = 0.1D HSS DRILLS LFTA SUTA HSS-HSS/CO CARBIDE END-MILLS G2 MDTA HF VH/UP MEF ALU MEX/MH UH/MH HSS END-MILLS CARBIDE BURRS 316
